Used 2010 D-F C61200 | Lathes, Engine

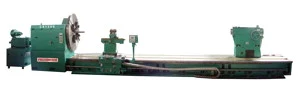

D-F 80" x 473" (2m x 12m) Model C61200 Heavy Duty (32 Ton) 3-Way Design Lathe
Standard configuration
Inch
240V/480V/60Hz
A2-20 spindle nose
120mm spindle bore
Three guide way
Coolant system
DC 75 kW spindle motor
Lubrication system
4 ways tool post
Rapid travel in longitudinal and cross axes
Working lamp

Technical specification
Swing over bed2000mm
Swing over cross slide1600mm
Width of guide way1600mm
Distance between center12000mm
Travel of cross slide725mm
Travel of top tool post600mm
Max. work-piece load32000 Kg
Section of tool shank 70x70mm
Max. torque of faceplate--8000 kg.m
Single tool post cutting force9000 kg
Total cutting force16000kg

Spindle
Spindle bore diameter120mm 1:17
Spindle speed 0.8--160 r.p.m
Step of spindle speed stepless

Feed
Longitudinal feed0.12848 mm/rev
Cross feed0.06324 mm/rev
Top slide feed0.063--24 mm/rev
Rapid traverse speedlongitudinal axis 3000 mm/min---cross axis 1500mm/min

Thread
Range of lmperial Pitches1-14 T.P.I.
Range of Metric Pitches2-40mm
Range of Module Pitches1.5-20MOD

Tailstock
Tailstock quill diameter300mm
Tailstock quill taper120mm/1:7
Tailstock quill travel300mm
Rapid traveling speed of motorized tailstock--3000mm/min

Machine size
Machine overall ( lengthWidth height)--992024802610mm
Machine weight 36400Kg

Standard accessories
Face plate dia.1600mm
Lubrication oil gun
Foundation bolts and leveling pads
Dead center --2 sets
Working light
Tool kits

Optional accessories
Steady rest 400-750mm 2 sets
2 axes DRO
Protection cover of chuck
