Used 2010 D-F CW61220 | Lathes, Engine

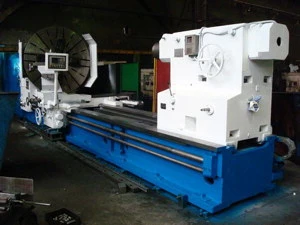

D-F 2.2m x 5m Model CW61220 Medium Duty (10 Tons) 2-Way Design Lathe. ALSO: Available (18 Ton) 2-Way Design.

Standard configuration
Metric
380V/50Hz/3phase
A2-15 spindle nose
100(130-option) mm spindle bore
Two guide way
Left hand-wheel
Coolant system
AC 30 kw spindle motor
Lubrication system
4 ways tool post
Rapid travel in longitudinal and cross axes
Working lamp

Technical specification
Swing over bed2200mm
Swing over cross slide1800mm
Width of guide way1100mm
Distance between center5000mm
Cross slide travel920mm
Travel of transverse tool post200mm
Travel of longitudinal tool post 400mm
Max. work-piece load10000 Kg
Section of tool shank 45x45mm
Tool post swing angle--90

Spindle
Spindle bore diameter100/130mm
Spindle speed 2.5--250 r.p.m
Step of spindle speed Manual 21 step
Feed
Longitudinal feed0.06412 mm/rev
Cross feed0.0326 mm/rev
Top slide feed0.016--3 mm/rev
Rapid traverse speedlongitudinal axis 3740 mm/min---cross axis 1870mm/min

Thread
Range of lmperial Pitches1/4-30 T.P.I.
Range of Diametral Pitches0.5-60 DP
Range of Metric Pitches1-120mm
Range of Module Pitches0.5-60MOD

Tailstock
Tailstock quill diameter280mm
Tailstock quill taper80/1:7
Tailstock quill travel300mm

Machine size
Machine overall (length x Width x height) 9920 x 2480 x 2610mm
Machine weight 30400Kg

Standard accessories
Face plate dia.1600mm
Tool kits
Lubrication oil gun
Foundation bolts

Optional accessories
Second carriage and tool post
2-axes DRO installed:
