New TMA FNS-10X3200 | Shears, Power Squaring (In)

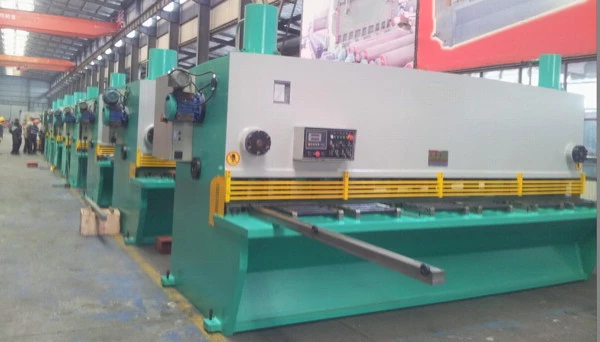

NEW TMA (China) Hydraulic Shearing Machine. Model: FNS-10X3200 Type: Hydraulic Swing beam shearing machine

General:
Cutting thickness: 10mm (for middle carbon steel (45Kg/mm2));
Cutting length: 3200 mm;
Cutting angle: 130;
Hold downs: 14 pc;
Ram travel: 3-7 times/minute;
Throat depth: 200 mm;
Back gauge travel: 750mm;
Motor: 11 KW.
Main Equipment:
Hydraulic system: OMEGA (Chinese);
Pump: Gear pump;
Electrics: China CHINT;
O-rings: Japanese NOK;
Connectors: Germany EMB;
Other standard equipment:
Segmented upper blade: 1set (two sides can be used);
Lower blade: 1set (four sides can be used);
Front supporting arms: 3 pieces;
Emergency stop button;
Back, and front safety fence;
Shadow line lighting;
Safety foot switch;
Foundation bolts: 1set;
Tooling: 1set (screw driver and spanner);
Manuals and diagram: 1book.
Back gauge
Light beam（Optional:
Bosch Valve (Optional:
Dimensions and Weight:
Length: 3860 mm; Width: 2000 mm; Height: 1700 mm; Weight (Approx.): 8000 kgs
