New D-F GMT21 | Machining Centers, Gantry & Double Column
Have one to sell?
ConditionNew
1 available
New

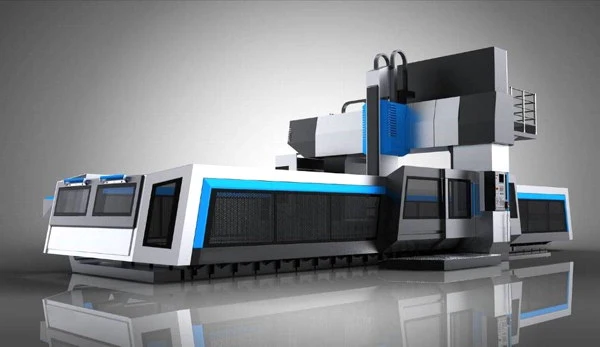

D-F 3.2m x 2.1m x 800mm (126 x 82.69 x 31.5) CNC Gantry Milling Machine Table Moving Type Model GMT21.
Machine main specifications
ItemUnitValue
Spindle Motor power KW22
Spindle speed-(ZF-German gearbox, two range)Rpm20-6000
Spindle taper ISO50 (7:24)
Diameter of spindle bearing Mm100
Travel
X axis travel（Worktable）Mm3200
Y axis travel (spindle travel in crossbeam)Mm2100
Z axis travel (Spindle vertical travel)Mm800
Distance from spindle nose to worktablemm50-850
Distance between two columnsmm2000
Worktable
Worktable size (L x W)mm3000x1600
Worktable loading capacityton10
Feeding
X axis rapid travelmm/min6000
Y axis rapid travel6000
Z axis rapid travel2000
Feeding ratemm/min5-4000
