Used 2001 MAZAK M5NX3000 | Lathes, Oil Field & Hollow Spindle

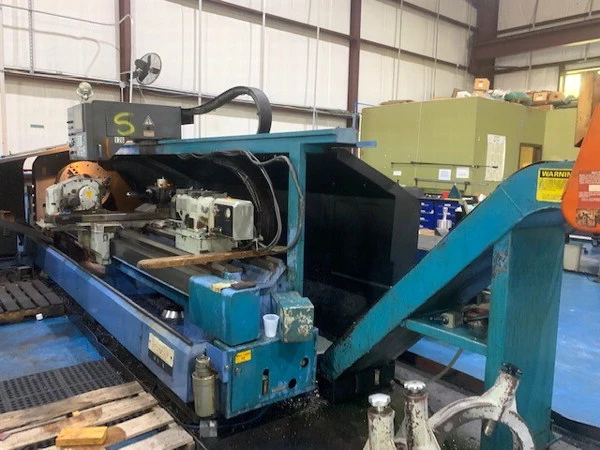

Mazak 24 x 120 Model M5N X 3000mm Flatbed Oil Country CNC Lathe with 7.1 spindle bore, with front & Rear chucks. Mazak Fusion 640 CNC Controls. (2) Machines available: 2001 & 2000

Specifications:
1.Standard Chuck Diameter.. 21″ SMW
2.Maximum Swing.. 24″
3.Maximum Swing Over Cross Slide. 13″
4.Maximum Cutting Diameter.. 22.8″
5.Distance Between Centers... 122″
6.Spindle Nose.. A2-15
7.Spindle Bore... 7.1
8.Spindle Speed.. 1000 RPM
9.Number of Speed Ranges 3
10.Spindle Horsepower (Cont/30 Min).. 25/30 HP (AC)
11.Type of Turret: Front Vertical Disk
12.Rear. Hexagon
13.Number of Tools: Front.. 8
14.Rear... 6
15.Axis 21.25″
16.Z-Axis: ... 121″
17.Tailstock Spindle Center.. M.T. #5
18.Tailstock Spindle Diameter.. 3.9″
19.Tailstock Spindle Travel. 5.12″
20.Floor Space: (W x L) l. 119″ x 261″
21.Machine Height... 83″
22.Machine Weight:... 16,940 lbs.

Equipped With:
Mazatrol 640T
7.1 Optional Spindle Bore
21″ SMW Air Chuck w Manual on Rear
20 3 jaw manual chuck on the rear with a rear flange
Steady Rest(s)
Chip Conveyor
(2) Machines under power in Houston, Texas shop.
