Used 2014 MAZAK SLANT TURN NEXUS 550 | Lathes, CNC

Item: 1910FMUBHE/UCFA Esco Update: 10/29/2019

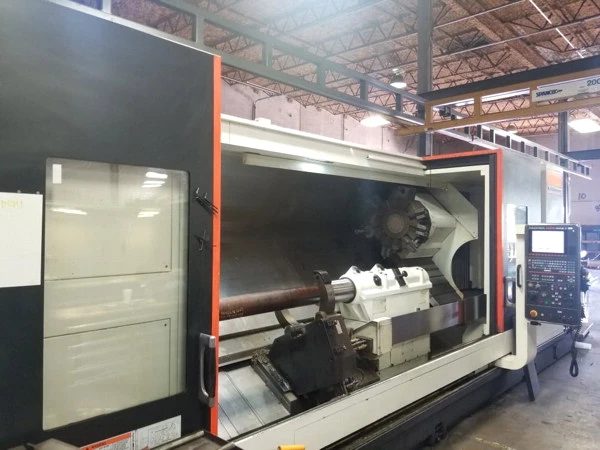

41 x 120 Mazak Model Slant Turn Nexus 550 Oil Country CNC Turning Center with 10.8 spindle hole. New 2014

Specifications:
Swing ...40.94
Maximum Machining Diameter 35.8
Max. Machining Length 123.8
X-Axis Travel .. 18.25″
Z-Axis Travel 129.875
Number of Spindle Speed Ranges..2
Spindle Speed...1000 RPM
Spindle Bore ....10.8
Spindle Nose..A2-20
Main Motor .. 60/50 HP
Number Of Tool Positions 12 Pos. Drum
Tailstock Stroke...126.75″
Taper...M.T. No. 6
Machine Height...96.9″
Machine Dimensions283.9 x 96.1″

Equipped With:
Mazatrol Matrix Nexus 2 CNC Control
Windows 7 Operating System
EIA/ISO Input Function
Thread Cutting Function (G33)
Re-Threading Function
Absolute Positioning System
MT Connect Preparation
Operation Door Interlock with Lock Switch
Hydraulic Pressure Interlock
Relocation Device
10.8″ Bore / 1000 RPM
Programmable Tailstock (Built in No.6)
2 Position Manual Quill
Chuck Open/Close Confirmation
Multitap Transformer
Hinge Type Chip Conveyor
SMW K5.1-Z Steady Rest 3.94″ 16.14″ Capacity
Tool holders included as they appear on photos of this machine. Extended boring bar & chucks showing in pictures are not included.

Located in Houston, Texas.
NOTE: CHUCKS AND EXTENDED LENGTH BORING BAR SHOWING IN PICTURES ARE NOT INCLUDED.
