New DMTG CW-6280-C/1 | Lathes, Engine

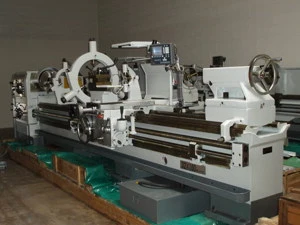

32 x 160" DMTG Heavy Duty Lathe model CW-6280-C/1

MAIN SPECIFICATIONS: mm inch
SWING OVER-BED 800 32
SWING OVER-CARRIAGE 520 20
DISTANCE BETWEEN CENTERS 2000-6000 80-240
GAPLENGTH 320 12
SWING OVER-GAP 1000 40
SPINDLEBORE 130 5
SPINDLENOSE D11 D11
SPINDLE TAPER MT 6 MT 6
SPINDLE SPEED 18-STEPS / 7.51000RPM
LONGITUDINAL FEEDS ( 64 )0.1 24.3/REV. .004.956
CROSS FEEDS ( 64 ) OF LONGITUDINAL FEED
RAPID LONG TRAVEL 3800/MINUTE 150/MIN.
THREADS: INCH(26) 141 TPI
DP (24) 281
METRIC (39) 1240 MM
MODULE (53) 0.5120MM

MAX. TRAVEL OF CROSS-SLIDE 450 18
MAX. TRAVEL OF TOP-SLIDE 200 8

TAIL-STOCK: QUILL DIAMETER 100 4
QUILL TRAVEL 250 10
QUILL TAPER MT 5 MT 5

MAIN MOTOR: 220V/3-PHASE/60Hz 15kw 20 hp
APPROX. GROSS WEIGHT 7500 KG. 16500 LBS.

EQUIPPED WITH:
2 AXIS DRO
16 3-JAW CHUCK,
TAPER TURNING ATTACHMENT
24 4-JAW CHUCK.
COOLANT SYSTEM
32 FACE-PLATE
HYDRAULIC SYSTEM
10 STEADY-REST,
4-WAY TOOL-POST + GUARD
18 STEADY-REST,
CENTERS + SLEEVE
FOLLOW-REST
LEVELING-PADS + FUNDATION BOLTS
WORK-LIGHT
THREAD DIAL INDICATOR
TOOLS
OPERATOR MANUALS.
