Used 1976 BERTHIEZ BM 225 | Lathes, VTL (Vertical Turret Lathe)

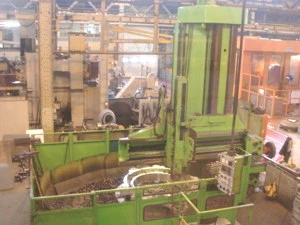

177 BERTHIEZ Model BM 225 Single Column Manual Vertical Boring Mill, Model BM 225, New 1976, S/N : 14404.

Specifications :
Chuck diameter 2 250 mm (88.60)
Max. turning diameter 4 500 mm (177.19)
Max. turning diameter to center 4 000 mm (157.50)
Max. height 3 000 mm (118.75)
Load on chuck 80 T ((176,000 lbs)
Ram stroke 1 250 mm
Saddle swivel 45 and 30
Speed range 1,25 to 125 RPM
Main motor power 70 kW
Side head horizontal travel 1 000 mm
vertical travel 2 530 mm
Equipped with :
Side head
D.R.O.
Taper turning and screw cutting device
Copy device
