Used BULLARD 74 | Lathes, VTL (Vertical Turret Lathe)

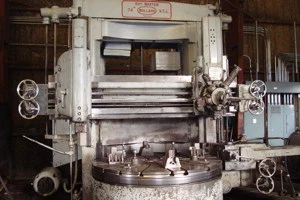

74" Bullard "CUTMASTER" Vertical Turret Lathe 3-heads

Specifications:
Max Swing - Side Head Above Table Top 78"
Max Swing - Side Head Below Table Top 82"
Max Distance Table to Rail 60"
Cross Rail Vertical Travel 48"
Max Distance Table to Face of Turret 60"
Turret Head Vertical Travel 30 3/8"
Turret Head Tool Post Holes 2 3/4"
Max Distance Table to Underside of Side Head Slide 20"
Side Head Vertical Travel 34"
Side Head Horizontal Travel 27"
74 diameter table with 4 boring mill jaws
Speeds: 20
4-Change gears: 2.45 RPM to 90.0 RPM
Feeds: 16
In Geometric Ratio: 003 IPR to .500 IPR
5-Sided Swiveling turret head, and Ram Head on Cross Rail
Side Head With 5 1/2" Square Turret for 1 1/4" x 1 1/2" Tools
Boring Ram H TYPE
Approx. Weight 70,400 Lbs
Approx. Dimensions 176" W x 136" D
Approx. Shipping Height 146"
40 HP Motor 3/60/220-440
