New WAFUM 63120/B21 | Lathes, Oil Field & Hollow Spindle

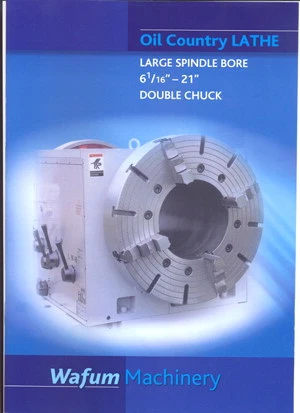

63 x 120 Wafum Oil country lathe, Model 63120 B21 with 21 spindle hole and double chuck.

Swing over bed 1600 mm (63)
Swing over cross slide 1230 mm (48)
Width of bed (mono block) 800 mm
Distance between centers 3000 mm (118)
Spindle bore 535 mm (21-1/16)
Spindle nose A2 28
Spindle speed 3 230 rpm
Double chuck main spindle
Tailstock spindle 200 mm
Tailstock taper mt7
Main motor 50 hp
Machine weight 17 ton (37,400 Lbs)

Equipment:
- 2 pc 40 inch independent 4 jaw chuck
- steady 150 380 mm
- steady 300 550 mm
- stand for steady
- copy device over full length
- air threading system
- quick change tool post
- live center
- standard equipment as lighting, coolant system, etc.
