New WAFUM TNC1200/3000 B21 | Lathes, Oil Field & Hollow Spindle

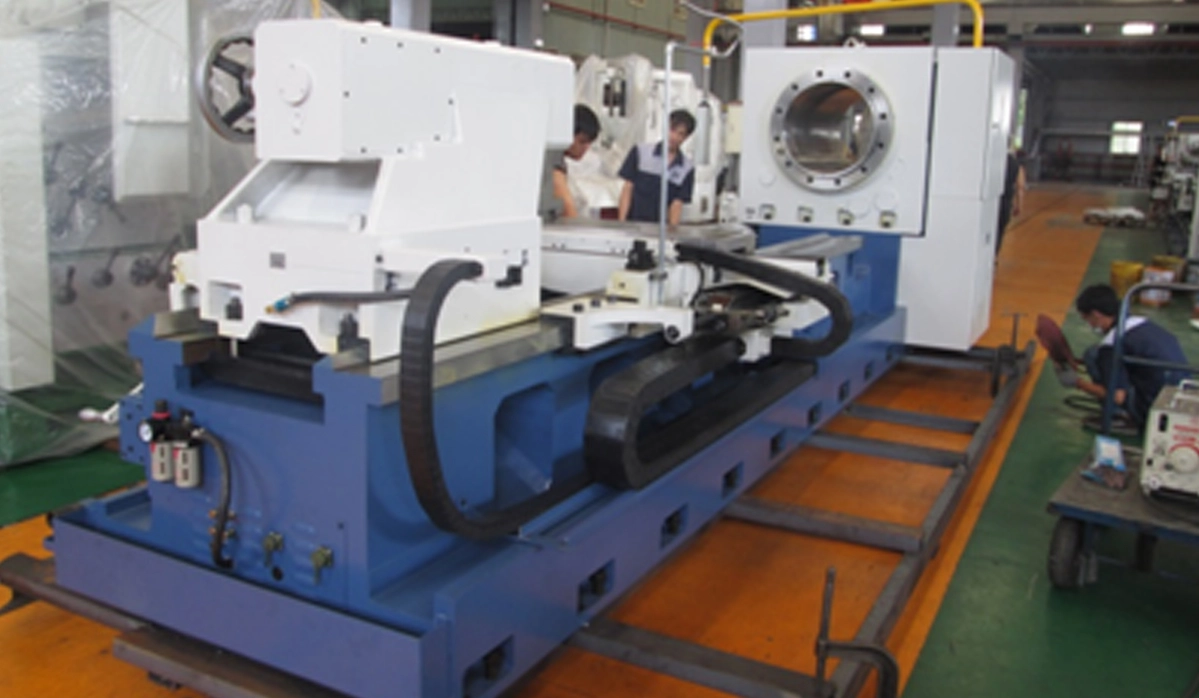

47.25 x 120 Wafum CNC Oil country flat bed turning center Model TNC 1200/3000 with 21 spindle hole and double chuck. Fanuc 0i TD CNC controls.

- swing 1200 mm (47.25)
- length between centers 3000 mm (118.12)
- spindle bore 535 mm (21)
- spindle nose A2- 28
- spindle speed 3 230 r.p.m. (4 ranges)
- Double chuck main spindle
Tailstock spindle 200 mm
Tailstock taper mt 7
Main motor 50 hp
Machine weight (37,400 Lbs)

Optional Equipment:
(2) independent 4-jaw chucks 36 inch (manual)
Steady rest 200 - 450 mm
Steady rest 350 - 600 mm
4-way turret, Horizontal
8-station turret, vertical

Overall dimensions: 6m (20) Long x 2.4m (8) Wide x 2m (6.6) High

Delivery time 4-5 months
Payment 30% by order, 70% before shipment.
Delivery FOB Shipping Port.
