New D-F FD | Tables, Rotary
Have one to sell?
ConditionNew
1 available
New

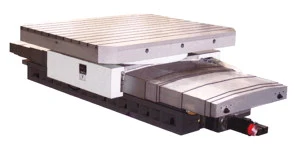

D-F 4m x 4m Model FD1000 CNC Rotary Table. 100 Ton table load capacity. See below for other sizes: 1.4 x 1.6m to 7m x7m.
Item UnitFD10FD30FD45FD100FD140 FD250FD350
Table SizeMm1400*16002000*25002800*28004000*40005000*50007000*70005000*5000
Max. load of worktableTon103045100140250350
Longitudinal travel of V axisMm20002000-30002000-30002000-30002000-50003000-60003000-6000
Feeding speed of V axismm/min0.1-100000.1-56000.1-56000.1-48000.1-45000.1-40000.1-3000
Rotating speed rangedeg/min0.1-10800.1-4500.1-4500.1-4000.1-2000.1-2000.1-100
Indexing accuracyarcsec6101010101012
T-slotMm28282836484848
WeightT1224263875100125
