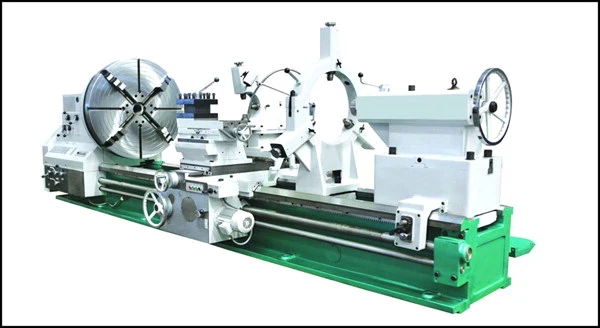

New D-F CF61100A/5000 | Lathes, Engine

Series: CF
Basic information: Max. Workpiece load 6-8 ton, width of bed is 755mm, two guideways in Z axis
Specifications:
ITEMCF61100ACF61125ACF61140ACF61160A
Max. Swing diameter over bed1000mm1250mm1400mm1600mm
Max. Swing diameter over carriage630mm880mm1050mm1250mm
Max. Weight of workpiece between two centers6 ton
Width of guideways on bed755mm
Distance between centers1000 to10000mm
Spindle bore diameter100mm
Taper of spindle nose1:20
Spindle speed stepsForward 12
Reverse 12
Range of spindle speeds6-272rpm4.25-192rpm
Range of feed per spindle revolution48kids
Longitudinal 0.057-12.726mm
Cross 0.027-6.096mm
Range of metric threads46kinds 1-224mm
Range of whit worth threads46kinds 28-1 t.p.i
Range of module threads37kinds 0.25-56mm
Steady restΦ50～Φ470mm
Section of tool shank 4545mm
Max. Traverse of top slide350mm
Rapid moving speed of tool postLongitudinal 3.8m/min
Cross 1.9m/min
Diameter of center sleeve140mm
Traverse of center sleeve300mm
Tailstock taper (Morse)Morse No.6
Main motor power22Kw
