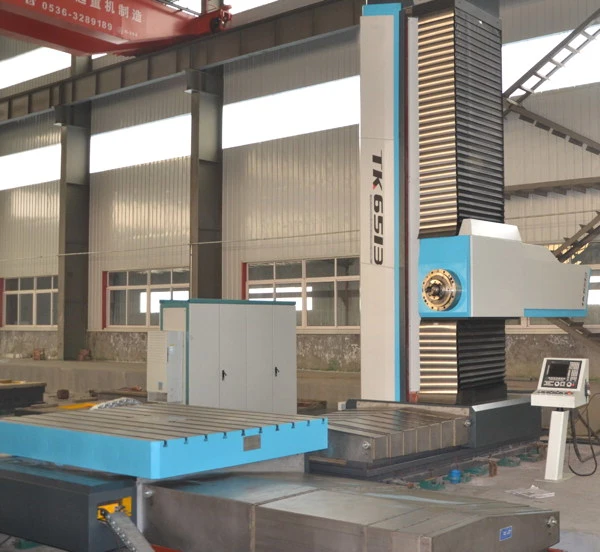

D-F 160mm (6.3) CNC Table type Horizontal Boring Mill Model TK6516A.
X: 3,500mm
Y: 3,000mm
W: 1,500mm
Z: 800mm
main specification
（
without ram
）
A
spindle
spindle diameter 160mm
spindle taper ISO 7 :24 No 50
shank specification JT50
pull stud LD-50D
spindle speed 10
～
1500r/min
B
structure data
motor power 37/51
（
kW
）
table size 2000X2500mm
table loading capacity 20000kg
T-slot 28x9
Distance from spindle center to worktable 100-2100mm
Min distance between spindle end and table 50mm
max spindle torque 3500Nm
max spindle thrust 25000N
C
working range
Cross travel of table X 3500mm
Vertical travel of spindle head Y 3000 mm
Longitude travel of column W 1500mm
Axial travel of boring spindle V 800mm
Table rotary travel B 360°
D
Feed range
X
、
W
、
Y 1-3000mm/min
V 1-2000mm/min
B 0-1r/min
E
Rapid movement
X
、
Y 8000mm/min
W 6000mm/min
V 3000mm/min
B 1r/min
F
Positioning accuracy
X
、
Y
、
W ±0.025mm
V ±0.020mm
B ±7.5" (±2")
Repeatability

main specification
（
with ram
）
A
spindle
spindle diameter 160mm
spindle taper ISO50
shank specification JT50
pull stud LD-50D
spindle speed 2
～
1500r/min
B
structure data
motor power 37/51
（
kW
）
ram size(option) 380mm×420mm
table size 2000X2500mm
table loading capacity 20000kg
T-slot 28
B
span of bed guide way 1340mm
span of column guide way 1100mm
max motor power 6500r/min
max spindle torque 3500Nm
max spindle thrust 25000N
C
working range
Cross travel of table X 3500mm
Vertical travel of spindle head Y 3000 mm
Longitude travel of column W 1500mm
Axial travel of ram(option) 8 0 0mm
Axial travel of boring spindle V 800mm
Table rotary travel B 360°
（
random
）
D
Feed range
X
、
Y 1-3000mm/min
W
、
Z(option) 1-2000mm/min
V 1-2000mm/min
B 0.003-1r/min
