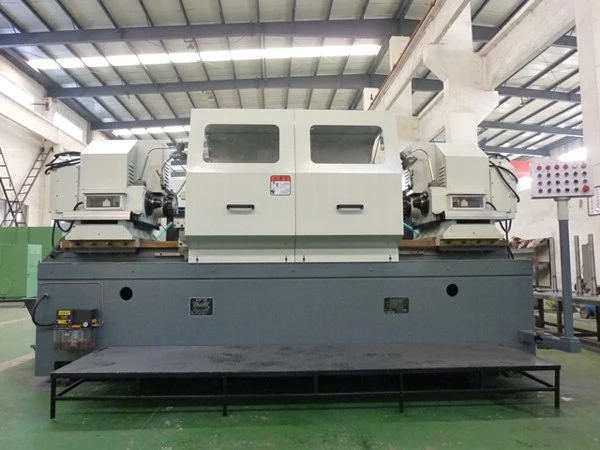

New CHANGZHOU XZ8210C/1000 | Facing & Centering Machines

Machine specification
1、Max. turning diameter length(mm) ┈┈┈┄┈┈┈Φ1001000
2、working range
Max.milling diameter(mm) ┈┈┈┈┈┈┈┈┈┈┈┈┈Φ100
Max.drilling diameter(mm) ┈┈┈┈┈┈┈┈┈┈┈┈Φ4/5/6
Max.turning length(mm) ┈┈┈┈┈┈┈┈┈┈┈┈┈1000
Min.turning length(mm) ┈┈┈┈┈┈┈┈┈┈┈┈┈100
3、main parameters
distance from drilling/milling spindle centerline to guideway surface(mm) ┈┈┈┈┈255
distance between drilling & milling spindles (mm) ┈┈┈┈┈┈┈┈┈┈┈┈┈180
distance from drilling/milling spindle centerline to floor (mm) ┈┈┈┈┈┈┈┈1055
Max.vise clamping diameter(mm) ┈┈┈┈┈┈┈┈┈┈┈Φ100
Max.milling spindle speed(gears change) ┈┈┈┈320/400/500/630
Max.drilling spindle speed(gears change) ┈┈┈630/800/1000/1250
drill/mill feed range ┈┈┈┈┈┈┈┈0.03─0.1stepless
Max.mill travel(mm) ┈┈┈┈┈┈┈┈┈┈┈┈ 165
Max.drill travel(mm) ┈┈┈┈┈┈┈┈┈┈┈┈ 90
Max.mill amount(one side mm) ┈┈┈┈┈┈┈┈┈┈┈ 6
mill cutter diameter(mm) ┈┈┈┈┈┈┈┈┈┈┈┈┈ Φ125
(m/min)rapid rate of drill spindle,slider and vises ┈┈┈┈┈ 2.5
4、general capacity of motor(Kw) ┈┈┈┈┈┈┈┈┈┈┈┈ 14.79
mill spindle motor（Kw）┈┈┈┈┈┈┈┈┈┈┈┈ 5.52
drill spindle motor（Kw）┈┈┈┈┈┈┈┈┈┈┈┈ 1.52
hydraulic motor(Kw) ┈┈┈┈┈┈┈┈┈┈┈┈┈ 2.2
coolant motor(Kw) ┈┈┈┈┈┈┈┈┈┈┈┈┈ 0.09
5、overall dimension(LWH)┈┈360020001800
6、weight（kg）┈┈┈┈┈┈┈┈┈┈┈┈┈┈ 6000
7、working accuracy( if material is 45# steel)
runout of centerhole on OD ┈┈┈┈┈┈┈┈┈┈ 0.2mm
repeatability of two sides facing length┈┈┈┈┈┈┈┈ 0.1mm
runout of two faces on centerline ┈┈┈┈┈ 0.05mm
repeatability of centerholes depths ┈┈┈┈┈┈┈┈┈┈ 0.1mm
roughness of faces ┈┈┈┈┈┈┈┈┈┈ Ra6.3
roughness of 60taper of centerholes ┈┈┈┈┈┈┈ Ra3.2
