New SMT CNC-OCL635 X 3000 | Lathes, Oil Field & Hollow Spindle

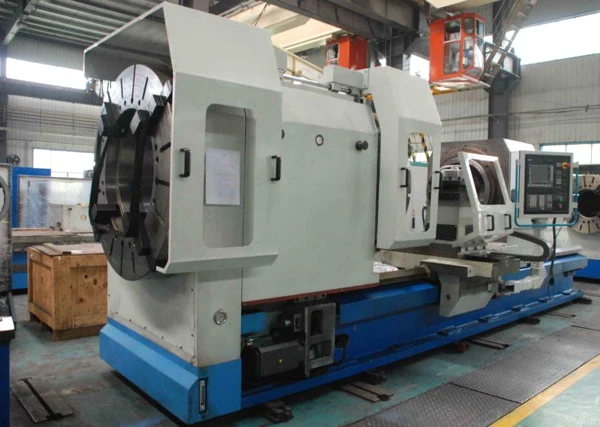

SMT (China) Model CNC-OCL635 x 3000 Flat Bed CNC Oil Country Lathe With 25 Spindle Hole.

Specifcations:
Swing over bed1400 mm
Swing over cross slide1100 mm
Bed width970 mm
Maxi. weight capacity between centers6000 KG
Maxi. workpiece length between centers3000 mm
Spindle bore diameter635 mm
Spindle bore passing-through diameter630 mm
Maxi. diameter of bar passing through spindle630 mm
Headstock Parameters
Spindle speeds2- 200 RPM, 2-Step
Chucks diameter (Front and rear)1250 mm
Mini. clamping diameter of chucks300 mm
Main motor power37 KW
Tool Post Parameter
Cross travel880 mm
Longitudinal travel3000 mm
Rapid traverse- Z axis6000 mm/Minute
Rapid traverse- X axis4000 mm/Minute
Feeding range on X axis1 2000 mm
Feeding range on Z axis1 2000 mm
Feeding servo motor for X axis35 N.M
Feeding servo motor for Z axis35 N.M
Tailstock Parameters
Diameter of quill200 mm
Quill travel300mm
Taper of quill boreMT #6
Machine Weight
Net Weight17000 KG
