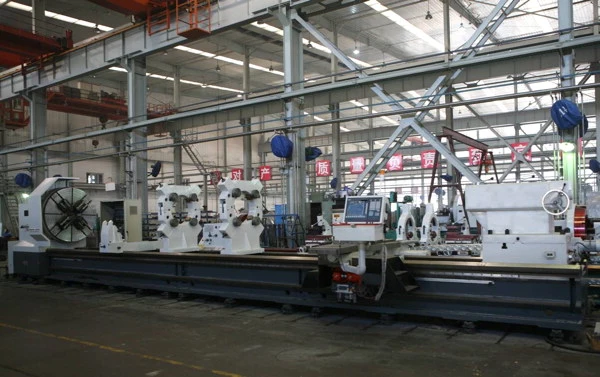

New D-F CKF61125A/10000 | Lathes, CNC

1. Machine Specifications
ITEMCKF61125ACKF61140A
Max. Diameter of workpiece over bed1250mm (49.219)1400mm (55.125)
Max. Diameter of workpiece over carriage880mm (34.65)1050mm (41.344)
Max. Length of workpiece10000mm (393.375)
Spindle bore100mm
Load between centers6000kgs
Width of bed 755mm
Max. Travel of carriage in Z/X axisZ Axis 10000mm
X Axis 650mmZ Axis10000mm
X Axis 715mm
Spindle speed range2~20r/min
3~40r/min
10~150r/min
20~300r/min
Turret4 position electric turret
Turret repeatability accuracy0.005mm
Tail stock taper bore 160mm/Morse 6
Feed pulse equivalence Z/X X axis 0.001mm (Diameter)
Rapid feed speedX/Z axis 6000mm/min
Positioning accuracy X axis 0.03mm
Z axis 0.045mm 1500
0.050mm 2000
0.060mm 3000
0.080mm 5000
Repeatability accuracyX axis 0.012mm
Z axis 0.020mm 1500
0.025mm 2000 3000 5000
Main motor30kw
4 steps (stepless in each range)
CNC SystemSiemens 828D
Total power125A, 380V 50Hz, 3phases, 3 wires
