New D-F CK5270M | Lathes, VTL (Vertical Turret Lathe)
Have one to sell?
ConditionNew
1 available
New

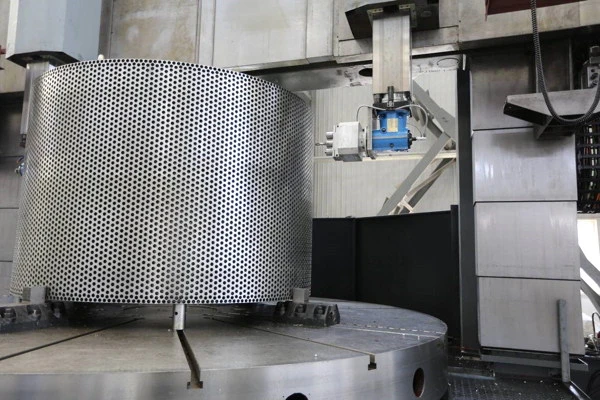

D-F 7m (276) Double Column CNC Vertical Lathe Model
CK5270M with indexing table and live spindle, with Milling and Drilling. 50 Tons Work-Piece Capacity.
VIDEO TURNING: https://www.youtube.com/watch?v=a03sOoyRN0s
VIDEO MILLING: https://www.youtube.com/watch?v=NL4V-8-iAAs
Main SpecificationsunitModel CK5270M
VIDEO TURNING: https://www.youtube.com/watch?v=NL4V-8-iAAs
VIDEO MILLING: https://www.youtube.com/watch?v=a03sOoyRN0s
Max. vertical turret cutting diametermm7000
Diameter of worktablemm5000
Max. height of work-piecemm4000
Max. weight of work-pieceton50
CNC system Siemens 828D
Simultaneous movement axis X、Z、C
Worktable
Table speed rangeCuttingr/min1～40rpm
Milling & indexing0.001-1
Main motor powerkw90
One Ram, with live spindle inside
Max. cutting force of tool postKN50
Horizontal travel of Ram-X axismm3550
Vertical travel of Ram-Z axismm2000
Rapid travel speed of Ram in horizontal and vertical mm/min2000
Section size of rammm280x280
Milling speed of live spindlerpm10-1600
Spindle taper of live spindle 7：24（ISO50#）
Max. power of live spindle 28KW
Max. live spindle force800N
Crossbeam
Travel of crossbeammm3400
Elevation speed of crossbeammm/min350
