New D-F C2531 | Lathes, VTL (Vertical Turret Lathe)
Have one to sell?
ConditionNew
1 available
New

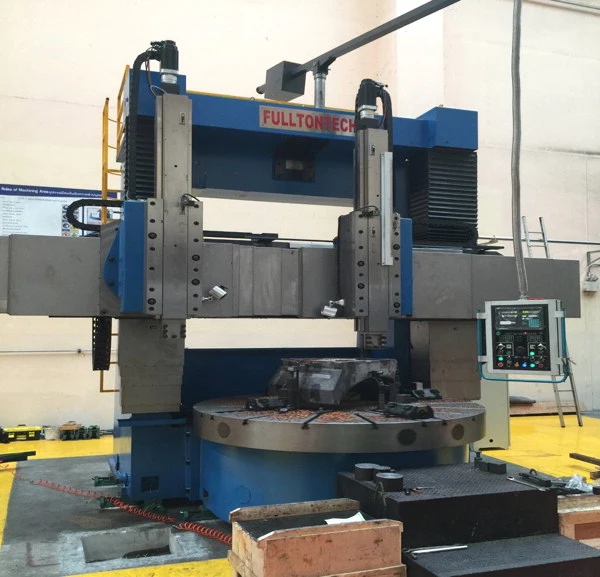

D-F 3.1m (122.06) Double Column Conventional Vertical Lathe Model C5231V 98-7/16 Height & 35,200 Lbs. Work-Piece Capacity.
Main SpecificationsunitModel C5231
Max.vertical turret cutting diametermm3100
Diameter of worktablemm2830
Max.weight of workpieceton16
Max.height of workpiecemm2500
Speed of worktablerpm2-63
Speed steps of worktablestep2
Max.Torque of table turningN80000
RamTwo rams, one is with 2 axis DRO, another one is without.
Ram traverse vertical-Z axismm1250
Ram section sizemm200x255
Horizontal traverse of rammm1600
Crossbeam travelmm2100
DRO(Digital Readout system)Yes
Main motor powerkw75
