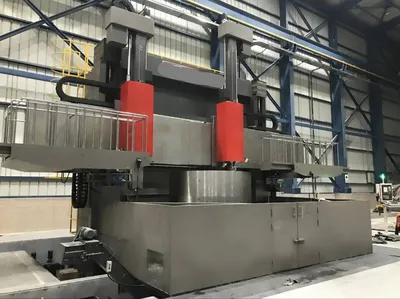

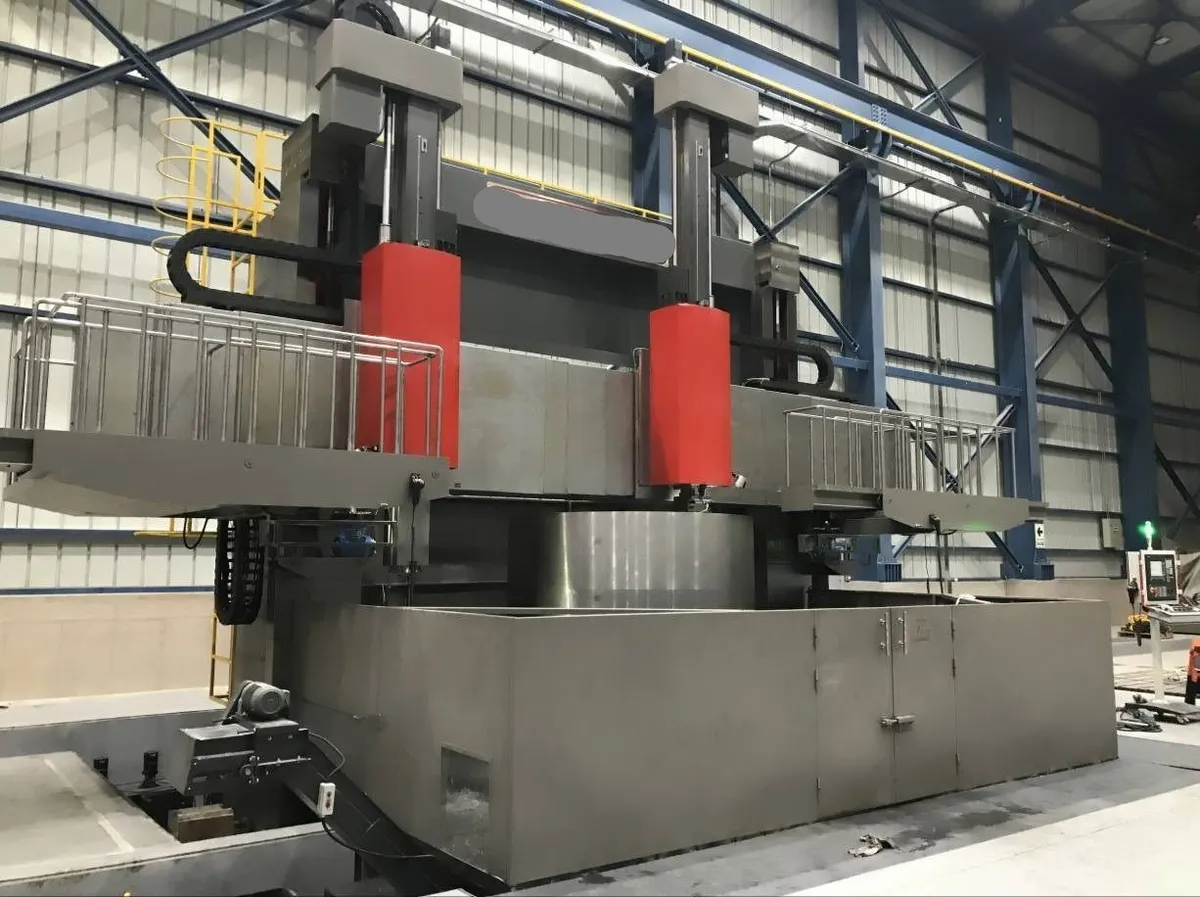

NEW D-F CK5231V 3.1m CNC Vertical Turning Lathe

Main Specifications unit Model CK5231HV
Max. vertical turret cutting diameter mm 3100
Diameter of worktable mm 2830
Max. height of workpiece mm 2000
Max. weight of workpiece ton 20
CNC system Siemens 828D
Max.Torque of table turning KN 80
Speed steps of worktable step 2 Steps
Speed of worktable rpm 0.5-63
Tool post-One CNC ram and one manual ram toolpost Square types
Ram section size mm Square-240x240
Right ram machining capacity KN 40
Left ram machining capacity KN 35
Horizontal travel of ram-X axis mm 1600
Vertical travel of ram-Z axis mm 1300
Rapid travel speed of tool post mm/min 4000/5000
Rapid travel speed of crossbeam mm/min 350
Cross beam travel mm 1600
With positioning block
Main motor power KW 75-CTB servo
Machine net weight(around) ton 43
