New D-F CF61250M | Lathes, Engine

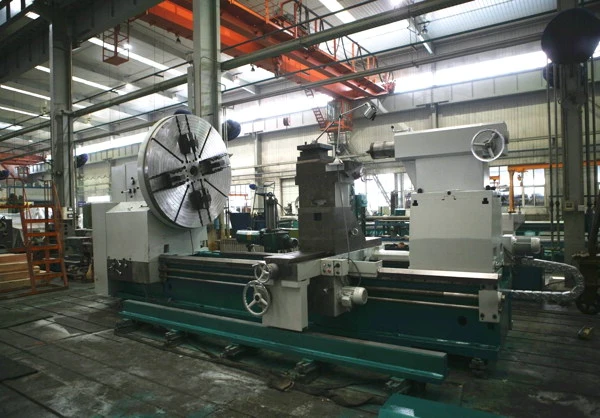

NEW D-F 2.5m x 3m (98.438 x 118.125) Model CF61250M-3000 Horizontal lathe with bed-way width 1100mm. 10 Ton work-piece capacity. 84-656 Swing over cross slide.
Technical introduction

The machine tool produced by our Corporation belongs to the multi-function series general machine tool whose load capacity is 10-12 tons. With the features of high accuracy, high reliability, high rigidity, precise manufacturing, elegant appearance as well as convenient maintenance, the machine tool could accomplish many tasks, such as rough or finish machining of metal and non-metal workpieces, turning of end faces, encircles, and inner holes, as well as turning of metric, BSP and module threads. The machine can also achieve short taper turning with the motor-driven upper tool rest individually. It has been the first choice for many machining and manufacturing industries such as paper making machinery, glue roller manufacturing, maintenance and repair, railway, moulds, large valves and metallurgy roller, etc.

Main Technical Parameters
ItemUnitCF61250M
Swing diameter over bedmm2500 (98.438)
Swing diameter over toolpostmm2150 (84.656)
Chuck diametermm1600 (63)
Additionally guideway for carriageYes, Floor type
Max. Weight of workpieceston10 (Load between centers10ton)
Max. Length of workpiecesmm3000(Tailstock sleeve extend out 250mm）
Width of machine bedmm1100
Spindle speedr/min 4.25-192 total 12 steps
Section of tool shankmm4545
Spindle diametermm200 front
Taper hole of spindle　1:20
Diameter of spindle holemm100
Toolpost travel in X axismm1160
Longitudinal rapid travel speed-Z axismm/min3800
Cross rapid moving speed-X axismm/min1900
Feed species of toolpost　48
Feed range of toolpost- longitudinal-Z axismm/r0.057～12.720
Feed range of toolpost- cross-X axismm/r0.027～5.296
Diameter of tailstock sleevemmΦ200
Taper hole of tailstock center　Morse No.6
Stroke of tailstock sleevemm250
Species number of threadsmmMetric 46 Range 1-224
tooth/inchInch 46 Range 28～1
mmModule 37 Range 0.25～56
Main motor parameters　22kw
Total power of the machineKW24.85
Closed type Steady restStandard mmφ500-850
Optional φ200-550
