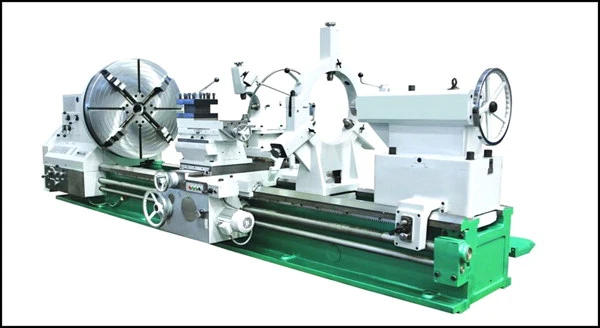

New D-F CF61200H/5000 | Lathes, Engine

Specifications:
Main SpecificationsCF61125HCF61140HCF61160HCF61180HCF61200H
Swing Dia. over bed1250mm 1400mm 1600mm 1800mm 2000mm
Swing Dia. over toolpost880mm 1050mm 1250mm 1450mm 1650mm
Max. Weight of workpieces20 Ton(between centers)
Max. Length of workpieces6000mm (Sleeve of tailstock extend 250mm)
Width of the machine bed 1100mm
Speed of spindle3-136 rpm ,12steps
Max. Torque2700kgm
Section of tool shank 4545mm
Spindle diameter240mm（front）
Spindle noseA2-15A2-15/A2-20 A2-20
Spindle taperMetric 140
Diameter of spindle hole 100mm
Traverse of top tool post300mm
Traverse of cross slide650mm 750mm 850mm 950mm 1050mm
Longitudinal rapid moving speed3800mm/min
Cross rapid moving speed1900mm/min
The number of feed for toolpost48
Feed range of toolpost Z axis-Longitudinal: 0.057-12.726mm/r
X axis-Cross: 0.023-5.296mm/r
Diameter of tailstock sleeve260mm Self-rotating spindle centers are equipped inside
Taper hole of tailstock center80; 1:7
Tailstock traverse250mm
The number of threadsMetric 46Range 1-224mm
BSP 4628-1 Tooth/inch
Module370.25-56mm
Main motor power 30kw, 1470rpm
Total power of the machine34kw
Supporting range of steady restϕ200-550mmΦ550-800mm
