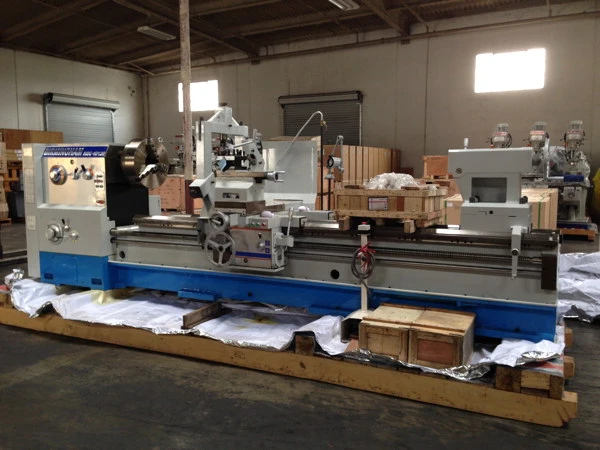

New BIRMINGHAM KCG-40120 | Lathes, Oil Field & Hollow Spindle

MAIN SPECIFICATIONSKGC40120
Max.swing diameter over bedmm/inch1030 (40 1/2")
Max.swing in gapmm/inch1200 (47 1/4")
Swing over cross slidemm/inch700 (27 1/2")
Distance between centersmm/inch3000 (120")
Length in gap from face platemm/inch380 (15")
Spindle noseC11 or D11
Spindle boremm/inch105 (4 1/8") or 130(5 1/8")
Taper of spindle boreMetric NO.120 or Metric NO.140
Spindle speedsrpm 10-800
No of spindle speedssteps18
Cross slide travelmm/inch615 (24 1/5")
Top rest travelmm/inch225(8 7/8")
Rapid traversemm/minZ :3200 (126"/min), X :1400 (55"/min)
Quill diametermm/inch120 (4 3/4")
Quill travelmm/inch270 (10 5/8")
Quill taperMT6
Bed widthmm/inch610 (24")
Metric threadsmm/kinds1-240 53 kinds
Inch threadstpi/kinds30-2 31 kinds
Modul threadsmm/kinds0.25-60 46 kinds
Diametral pitch threadslpi/kinds60-1/2 47 kinds
Longitudinal feed rangemm/rev.0.07-16.72 (0.00276"/rev.-0.658"/rev.)
Cross feed rangemm/rev.0.04-9.6 (0.00157"/rev.-0.378"/rev.)
Main motor powerkw/hp11(15 hp)
packing sizemm/inch5310x1400x2000 (209"x55"x79")
Gross weight/Net weight (Approx)kg6400/6900 (14110/15212 lbs)
Design and specifications are subject to change without notice
