Good 2012 YOU JI 1000-ATC | Lathes, VTL (Vertical Turret Lathe)

ITEM: 1901SLUBJJ/UBFG ESCO UPDATE: 02/06/2019

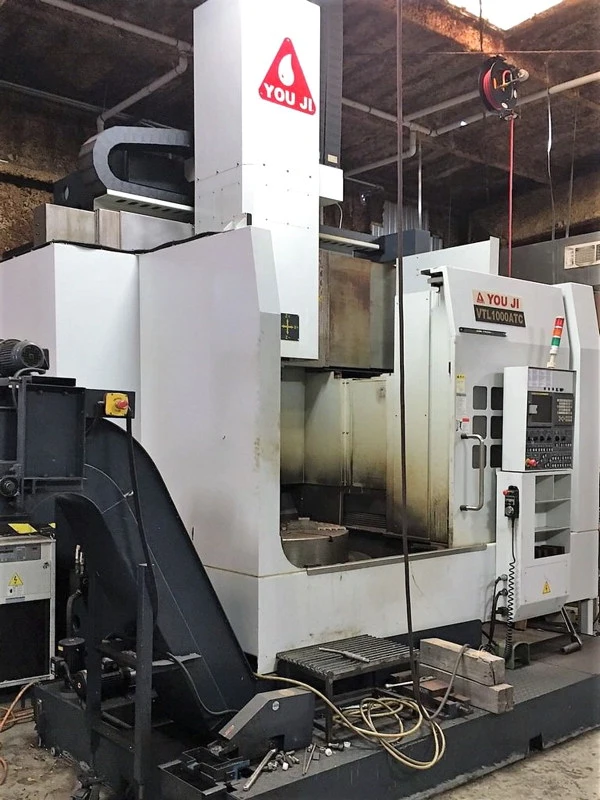

53 YOU-JI (TAIWAN) MODEL 1000 ATC CNC VERTICAL TURNING CENTER WITH ATC. NEW 2012
SPECIFICATIONS
FANUC 18ITB CNC CONTROL
RAM WITH 12-POSITION ATC
TABLE DIAMETER: 39.37" Unique features of this chuck: High precision 39 4-jaw self-centering hydraulic power chuck with independent adjustment per jaw.
MAXIMUM SWING: 53.14"
MAXIMUM CUTTING DIAMETER: 43.30"
MAXIMUM CUTTING HEIGHT: 35.43"
(RECENTLY WE RAISED THE RAIL TO DETERMINE IF THE WORK-PIECE HEIGHT COULD BE EXTENDED, 38 WAS OBTAINED WITH APPROX 10 ADDITIONAL TO GO, THE MACHINE IS NOW SETUP WITH A SAFETY LIMIT SWITCH TO PREVENT IT FROM RAISING HIGHER. IF LARGER CAPACITY UNDER THE RAIL IS REQUIRED, IT COULD POSSIBLY BE OBTAINED, BUT WE DID NOT ATTEMPT IT).
TABLE WEIGHT CAPACITY : 8,800 LBS
VERTICAL TRAVEL OF RAM, Z-AXIS : 31.49"
TABLE SPEED, 2-RANGES : 1-600 RPM
CUTTING FEED RATE : 0.39-78.7 IPM
AUTOMATIC TOOL CHANGER : 12 ATC
TOOL SHANK : BT-50 7/24
MAIN TABLE MOTOR (220 VOLT) : 49 HP/60 HP
APPROX MACHINE WEIGHT : 68,200 LBS

EQUIPPED WITH:
FANUC 18IMB CNC CONTROL
39.37" 4-JAW HYDRAULIC CHUCK
RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
60 HP TABLE DRIVE MOTOR
TOOLING
USAGE:
POWER ON: 6,547
CUTTING HOURS: 1,437
INSPECT IN PLANT UNDER POWER IN HOUSTON, TEXAS.
VIDEO: DOWNLOAD LINK HTTPS://WE.TL/T-DVGJLRXQXW
