New D-F CK5116HM | Lathes, VTL (Vertical Turret Lathe)

D-F 1,600mm (63”) Model CK5116HM CNC Single Column Vertical High
Speed Turning & Milling Lathe with C axis, live spindle & ATC
2, Specifications
ITEM Unit CK5116M
Worktable Max. swing diameter mm 1650
Max. cutting diameter mm 1650
Worktable diameter mm 1400
Max. workpiece height mm 1200 (optional to increase capacity, POR)
Max. worktable load ton 8
Max. output torque of worktable N.m 16000
Worktable main motor KW 37
Worktable speed turning rpm 315
Indexing & milling rpm 0.0032-3.2
Travel Travel of X axis mm -50-850
Travel of Z axis mm 1000
Vertical travel of crossbeam mm 800
Crossbeam balance positioning block mm 200mm each
Rapid travel speed of X axis mm/min 5000/6000
Rapid travel speed of Z axis mm/min 5000/6000
Feed speed of X/Z axis mm/rev 0.01-50

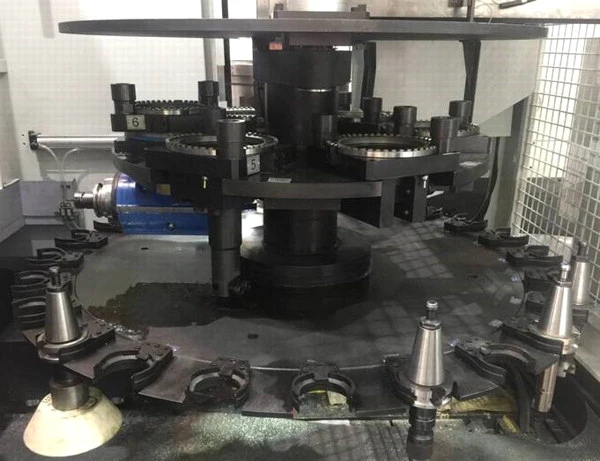

Servo Tool magazine Tool capacity-Servo ATC set 24 (milling tool) or 6 (turning tool)
Tool shank 　 BT50
Max. tool weight kg 20
Total tool weight of tool magazine kg 360
ATC tool changing time sec Around 60
Live spindle Milling head speed rpm 2000
Ram section size mm 255x255
Max. output torque N.m 600
Live spindle motor-Siemens servo Kw 17
