New D-F CK5123HM | Lathes, VTL (Vertical Turret Lathe)

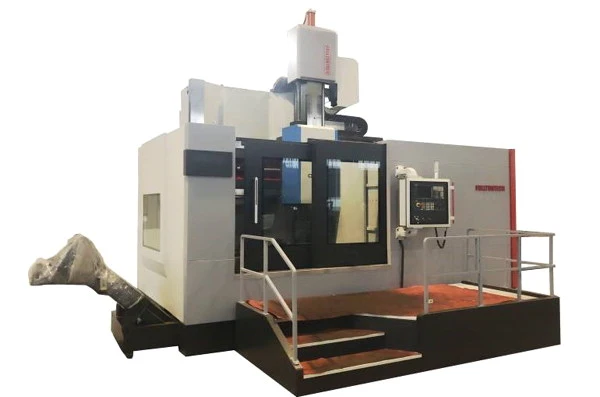

D-F 2.3m (90.563) Model CK5123HM Vertical Turning/Milling Center with Live Tooling & C axis and ATC. 90.563 max swing

VIDEO MILLING: https://www.youtube.com/watch?v=a03sOoyRN0s
VIDEO TURNING: https://www.youtube.com/watch?v=NL4V-8-iAAs

Specifications:
ITEMUnitCK5123M
Worktable diameter.Mm2000
Max. swing diameterMm2300
Max. cutting diameterMm2300
Max. workpiece heightMm1200
Max. worktable loadTon8
Max. output torque of worktableN.m25000
Worktable main motorKW37
Worktable speedturningRpm1-120
Indexing & millingRpm0.0032-3.2
TravelTravel of X axisMm-50-1150
Travel of Z axisMm1000
Vertical travel of crossbeamMm800
Crossbeam travel with positioning blockMm200mm each
Rapid travel speed of X axismm/min6000
Rapid travel speed of Z axismm/min6000
Travel speed of W axismm/min440
Feed speed of X/Z axismm/min0.01-50
Servo Tool magazineTool capacity-Servo ATCSet24 (milling tool) or 6 (turning tool)
Tool shank　BT50
Max. tool weightKg20
Total tool weight of tool magazineKg360
ATC tool changing timeSec30
Live spindleMilling head speedRpm10-2000
Ram section sizeMm255x255
Max. output torqueN.m600
Live spindle motor-Siemens servoKw17
