New D-F CK5250M-50 | Lathes, VTL (Vertical Turret Lathe)

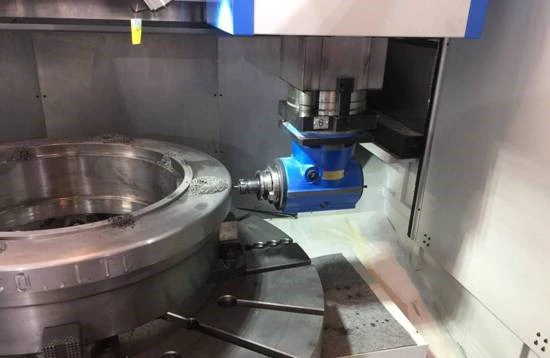

NEW D-F 5m (200) Model CK5250M-50 Vertical Turning/Milling Center with Live Tooling & C axis, 30 ATC. 196.875 Max Swing. 50 Ton Work-Piece Capacity Also available with 32 ton work-piece capacity, model CK5250M-32. Also available 3m & 3.5m vertical capacity

On the web: http://www.escohou.com/ESCO/inventory-new.tmpl?do=l&machineid=1060&MachineClass=new
Please click on the links below for Turning & Milling Videos:
VIDEO MILLING: https://www.youtube.com/watch?v=a03sOoyRN0s
VIDEO TURNING: https://www.youtube.com/watch?v=NL4V-8-iAAs

Main specifications:
Main SpecificationsunitModel
CK5250M(50)
Max. vertical turret cutting diametermm5000
Diameter of worktablemm4500
Max. height of work-piecemm3100
Max. weight of work-pieceton50
CNC system　Siemens 828D
Worktable
Table speed rangeCuttingrpm0.5～50
Milling & indexingrpm0.001-1
Main motor powerkw90
Max. torqueNm100000
Ram & live spindle
Max. cutting force of ramKN50
Horizontal stroke of ram-X axismm2550
Vertical travel ram-Z axismm1600
Horizontal and vertical feed rate of Rammm/min0.001-3000
Rapid travel speed of Ram in X&Z axis mm/min4000
Section size of rammm280 x 280
Milling speed of live spindlerpm10-2500
Spindle taper of live spindle　BT50
Live spindle PowerKW17
Max. torque of live spindle Nm600
ATC-Automatic tools change
Cutting tools-cutting toolpost with hirth coupling station6
Milling tools-suitable BT50 tool shankstation24
Crossbeam
Travel of crossbeam-W axismm2600
Elevation speed of crossbeammm/min350
Others
Machine overall size(depend on the final configuration)mm14000x8800x9200
Machine weight(depend on the final configuration)ton95
