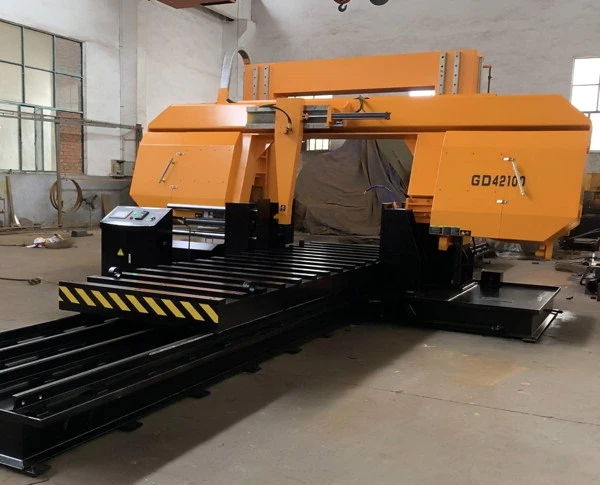

New D-F G-42100 | Saws, Band, Horizontal, Dual Column

Main Specifications:
MODEL Unit G42100 (Table type)
Max. Cutting
capacity
Round
mm
Dia.1000mm
Quadrate 1000x1000mm
Saw blade size
Mm
(Inch)
9,820×67×1.6 (386. 67” x 2.64” x .063”)
Saw blade cutting variable speed
M/Min
(FPM)
Standard Speed: 15 to 60m/min (50 to 200
FPM) WITH INVERTER.
600m/min (1,970 FPM) is the top
speed that can be supplied with this
machine. Standard speed is
15-60m/min (50-200 FPM). Delivery
time is standard as quoted.
Custom speed 90-120m/min (300-
400 FPM). Add 15 days for delivery.
Custom Speed 45-90m/min (150-300
FPM). Add 15 days to delivery.
Custom Speed 300-600m/min
(985-1,970 FPM). Add 15-25 days to
delivery.
Saw blade Tension Hydraulic
Saw blade Guides Carbide and bearing blade guides
Saw blade Cleaning Power wire brush & flood coolant
Main motor power
Kw
(HP)
11 (14.7)
Hydraulic pump
Kw
(HP)
3.75/4 (5/5.5)
3
Coolant pump w 90
Worktable length mm 2000mm
Worktable feeding Electric feeding-1000mm (Op:1500mm)
Work Vice Hydraulic
Overall dimension（L×W×H）
Mm
(Inch)
4,560mm × 2,200mm × 2,950mm
(14.97’ x 7.22’ x 9.68’)
*Top section removed for shipping
