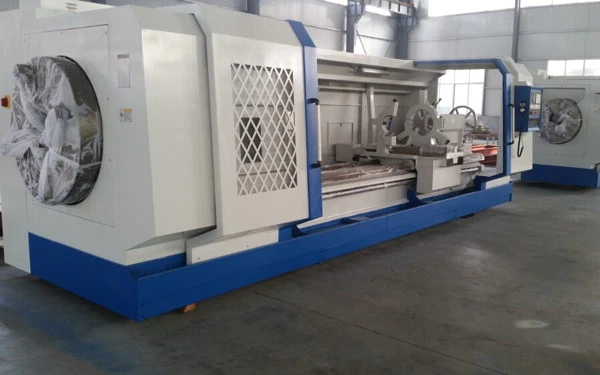

New DRC QK1352 | Lathes, Oil Field & Hollow Spindle

Technical parameters:

SpecificationQK1352Unit
Spindle bore530mm
Swing over the Bed1250mm
Swing over the Cross slide800mm
Center to center distance3000mm
Cross slide travel500mm
Chuck 4 JAW manual OD & ID :1000/(520/550)mm
Width of the bed755mm
CNC systemSIEMENS / FANUC　
tube Minimum/maximum dia300-(510/540)mm
X axis ball screw size, Make and SpecificationsGD3206-4All C3
Z axis ball screw size, Make and SpecificationsGD6310-4All C3
Manual Tail stock / Quill travel & Dia / Taper :300/140/Morse 6　
Speed Range:8-200r/min
Spindle drive motor22/37KW
Program system memory:40Mb
X axis motor & Capacity :3.3kw
Z axis motor & Capacity :4.5kw
Coolant tank : size60-80L
Rapid speed:3-5m/min
Overall dimensions:500023502600mm
Packing size625028502800
Gross / net weight:16600/15600Kg
Voltage: 380 3 phase / 50 Hz380 3 phase / 50 Hz
