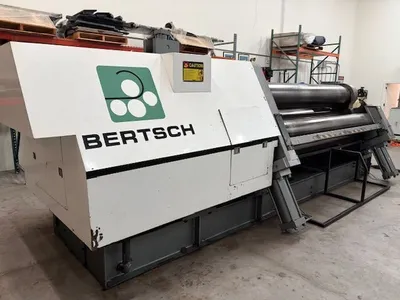

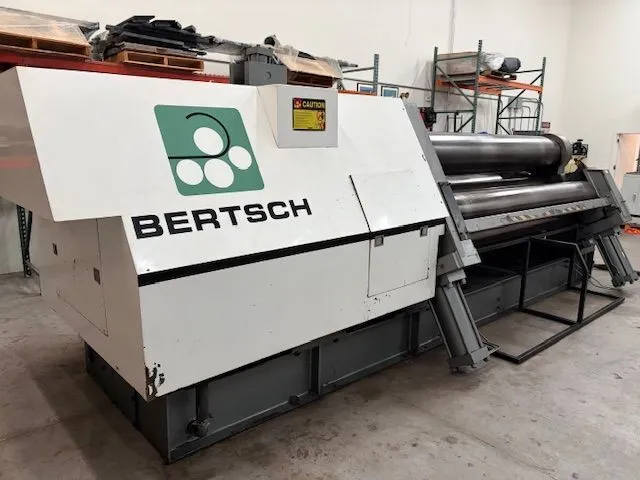

Bertsch 1" x 10' 4-Roll Model FR14-10 Plate Bending Machine. New 2018
Rolls, Plate Bending (incl Pinch)| Length of Rolls | 10' |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH |
| Max Thickness | 1" |
| # Rolls | 4 |
| Hyd/Mech | Hyd |
| Power Rear Roll (Yes/No) | Yes |
DETAILED SPECIFICATIONS
Nominal Rolling Capacity (Multi-Pass)
Nominal Rolling Capacity (Single-Pass)
0.750" x 120" x 18.9" Diameter (49,000 PSI Yield Strength)
Nominal Pre-Bend Capacity
1" x 120" x 25.5" Diameter (49,000 PSI Yield Strength)
Capacity (Mild Steel)
1"
Max. Working Length
120"
Roll Diameter:
Top
17"
Bottom
14"
Roll Speed
14'/Minute
Roll Width
122"
Material Thickness (At Reduced Width- See Chart)
3"
Voltage
230v@150 amps, 460v @ 90amps
Dimensions (L x W x H)
271" x 102" x 53.75"
Weight
49,000 Lbs.
Horsepower
40 H.P.
EQUIPPED WITH
Powered Front & Rear Rolls With Digital Readouts
Pedestal Control
Hydraulic Drop End
Emergency Cable Stop
Cone Rolling
