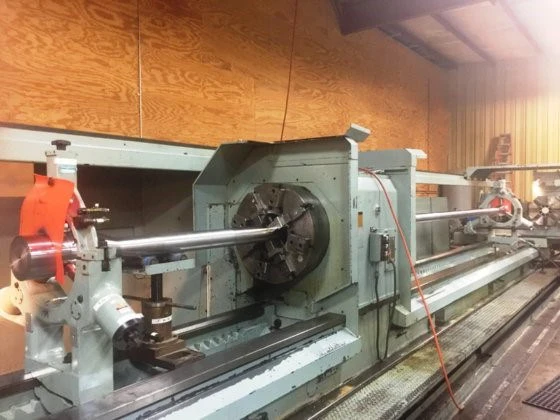

IKEGAI MODEL ANC-56 DOUBLE END, DUAL SPINDLE, CNC OIL COUNTRY LATHE WITH 11 HOLE THRU THE SPINDLE. FANUC CNC CONTROLS. NEW IN 2000
EQUIPPED WITH:
Fanuc 18 CNC Controls,
Chip Conveyor,
(3) 18" Steady Rests,
(2) 5" Diameter Deep Hole Boring Bar Holders (includes 5" Carbide/Steel Boring Bar with Quick Change Head),
Tool station 8 on Right Turret has an additional Programmable Tool Changer that holds approx 12 OD Turning Tools,
(2) 28" 4-Jaw Chucks with 11" Thru Hole,
(2) 21" 3-Jaw Chucks with 8" Hole
56 maximum swing over the bed-ways
26 approx swing over the cross slide (Will Confirm)
400 RPM maximum spindle speeds in (2) ranges
50 HP main motor
Hole Thru the Spindle 11"
Distance Between Centers 475" Total Distance between Centers, Both Ends
Travels:
Right Side 240"
Left Side 140"
Distance Between Chuck Faces 63"
Tailstock Right Side Programmable 6 MT
