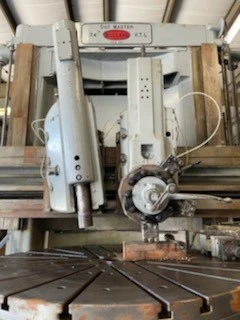

74" Bullard Cutmaster 3-heads vertical turret lathe
Lathes, VTL (Vertical Turret Lathe)
| Table Dia | 74" |
| Swing | 82" |
| Work Ht-U/R | 62" |
| Power | 30 hp |
| RPM | 60 RPM |
74” Bullard Cutmaster, recently removed from service, presently at rigger warehouse in CT.
Model 74” Cutmaster. S/N: 22750. Manufactured March 25, 1943
74” Diameter 4-Jaw Table with Jaws
82” Maximum Swing
Ram & Turret Heads on rail + Side Head
62” Height under rail
Table Speeds from 2.5 to 90 RPM
30 HP 220/440 Volt Electrics
