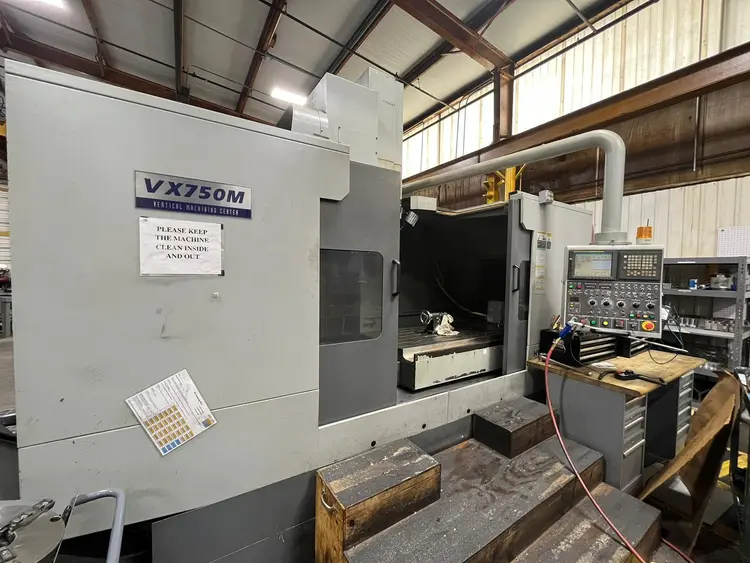

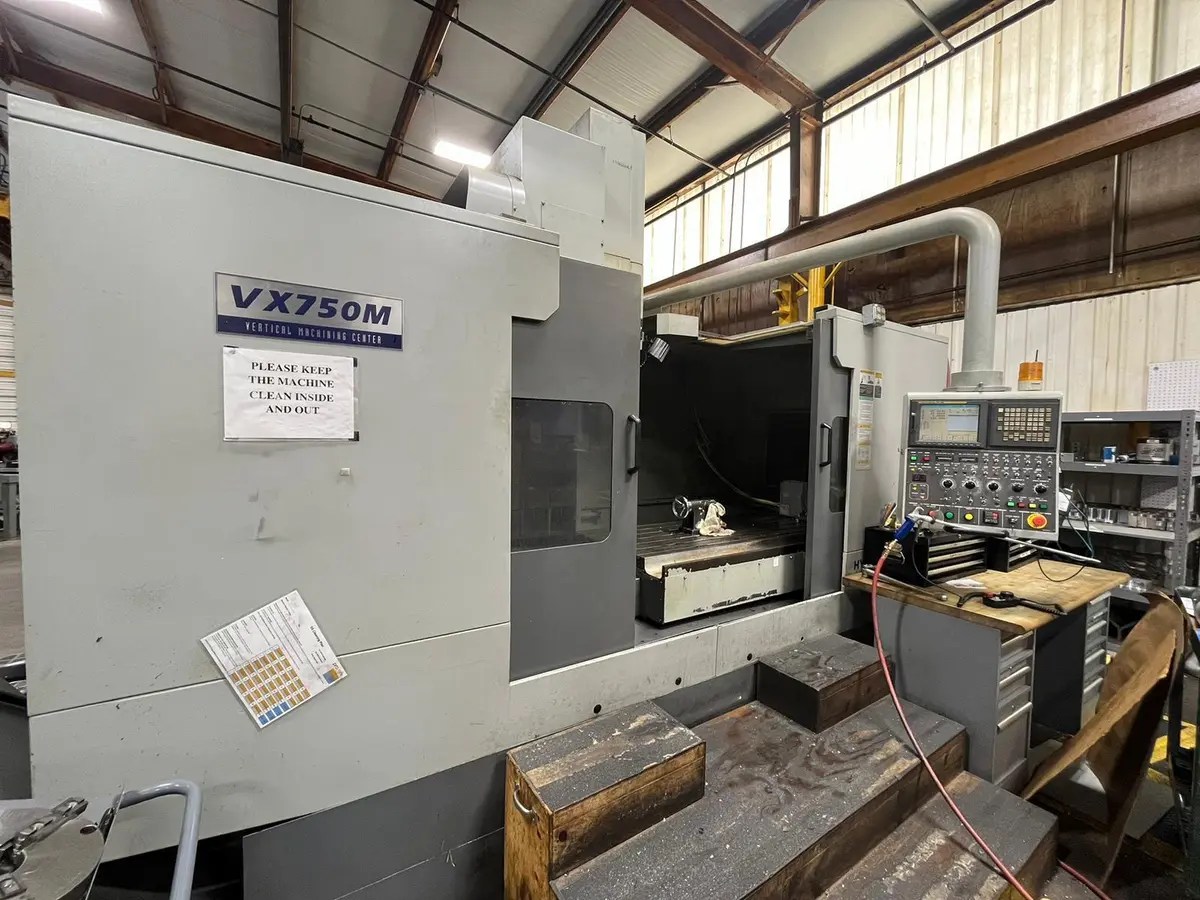

HYUNDAI KIA VERTICAL MACHINING CENTER MODEL VX750M. FANUC 18i-MB CNC CONTROLS. NEW IN 2007

HYUNDAI KIA VERTICAL MACHINING CENTER MODEL VX750M. FANUC 18i-MB CNC CONTROLS. NEW IN 2007

SPECIFICATIONS:
X-AXIS TRAVEL................................................. 61"
Y-AXIS TRAVEL................................................ 29.5"
Z-AXIS TRAVEL................................................ 28.3"
TABLE SIZE...................................................... 70.9" X 27.6"
TABLE TO SPINDLE NOSE (UP - DOWN)...... 7.87" - 36.2"
COLUMN TO SINDLE CENTER....................... 31.1"
SPINDLE TAPER.............................................. 50 CAT
SPINDLE SPEED ............................................ 10,000 RPM
AUTOMATIC TOOL CHANGER....................... 30 POSITIONS
TABLE LOAD CAPACITY................................. 4,400 LBS
SPINDLE POWER.........................,,,,,,,,,,,,,,,,,,. 40/33.5 HP
FLOOR SPACE: 187.1" L x 150.8" W x 136.8" H
APPROXIMATE MACHINE WEIGHT: 28,600

EQUIPPED WITH:
- 4TH AXIS
- FANUC MODEL: 18I-MB CONTROL
- CHIP CONVEYOR
- AUTOMATIC TOOL CHANGER (30 TOOL CAPACITY)

UNDER POWER IN HOUSTON, TEXAS SHOP.
NOTE: THIS VMC IS PRESENTLY NOT OPERATING, POWER SUPPLY NEEDING WORK. THIS ISSUE WILL BE FIXED WHEN THE MACHINE IS SOLD AND PRIOR TO DELIVERY TO NEW CUSTOMER.

HOUSTON, TEXAS LOCATION
