New D-F ck5116 | Lathes, VTL (Vertical Turret Lathe)

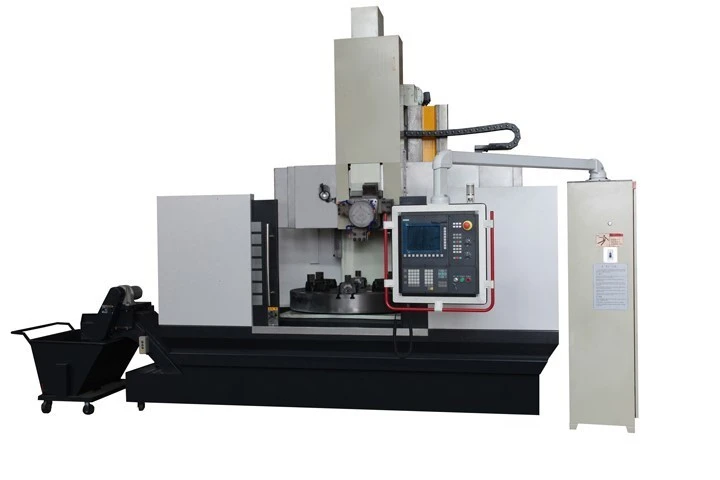

New 1.6m (63) D-F CNC Model CK5116M Single Column Vertical Turret Lathe

Delivery time in USA, Canada or Europe: In stock - Ready to deliver immediately

2, Machine specifications:
Specifications unit CK5116
Vertical turret cutting diameter (Max.) mm 1600
Diameter of worktable mm 1400
Max.height of workpiece mm 1600
Max.weight of workpiece ton 5
Speed range of worktable turning r/min 0.5-200
Speed range of worktable turning step CNC controlled
4 steps
Max. worktable torque N 32000
Max. cutting force of Ram N. 30000
Ram horizontal travel-X axis mm 950
Ram vertical traverse-Z axis mm 800
Toolpost 　 Square toolpost
Rapid traverse of Ram mm/min 5000/6000
Crossbeam travel mm 800
Crossbeam travel speed mm/min 440
Power of main motor kw 45
CNC system 　 Siemens 828D
Standard voltage & Hz 380V, 50Hz, 3 phase
