New in stock D-F CK5263M | Lathes, VTL (Vertical Turret Lathe)

NEW D-F 6.3m (248") Model CK5263M Vertical Turning/Milling Center with Live Tooling & C axis, 30 ATC. 50 Ton Work-Piece Capacity 280mm square single ram.
Main specifications
Main Specifications unit Model
CK5263M(50)
Max. vertical turret cutting diameter mm 6300
Diameter of worktable mm 4800/5000
Max. height of work-piece mm 3150
Max. weight of work-piece ton 50
CNC system 　 Siemens 828D
Simultaneous movement axis 　 X、Z、C
Worktable
Table speed range Cutting rpm 1～40rpm
Milling & indexing 0.001-1
Main motor power kw 90

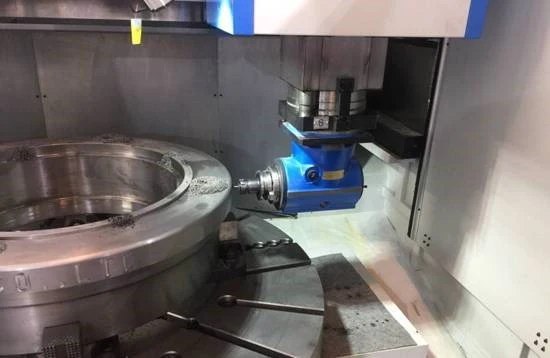

One Ram: Ram with live spindle inside
Max. cutting force of ram KN 50
Horizontal travel of Ram-X axis mm 3200
Vertical travel of Ram-Z axis:
NOTE: Not recommended to machine with angle head at bottom of Z stroke mm 1600 Standard
2000 option
Rapid travel speed of Ram in horizontal and vertical mm/min 6000
Section size of ram mm 280x280
Milling speed of live spindle rpm 10-2000
Spindle taper of live spindle 7：24（BT50）
Max. power of live spindle KW 17
Max. live spindle force NM 600
Crossbeam
Travel of crossbeam mm 2600
Elevation speed of crossbeam mm/min 350
