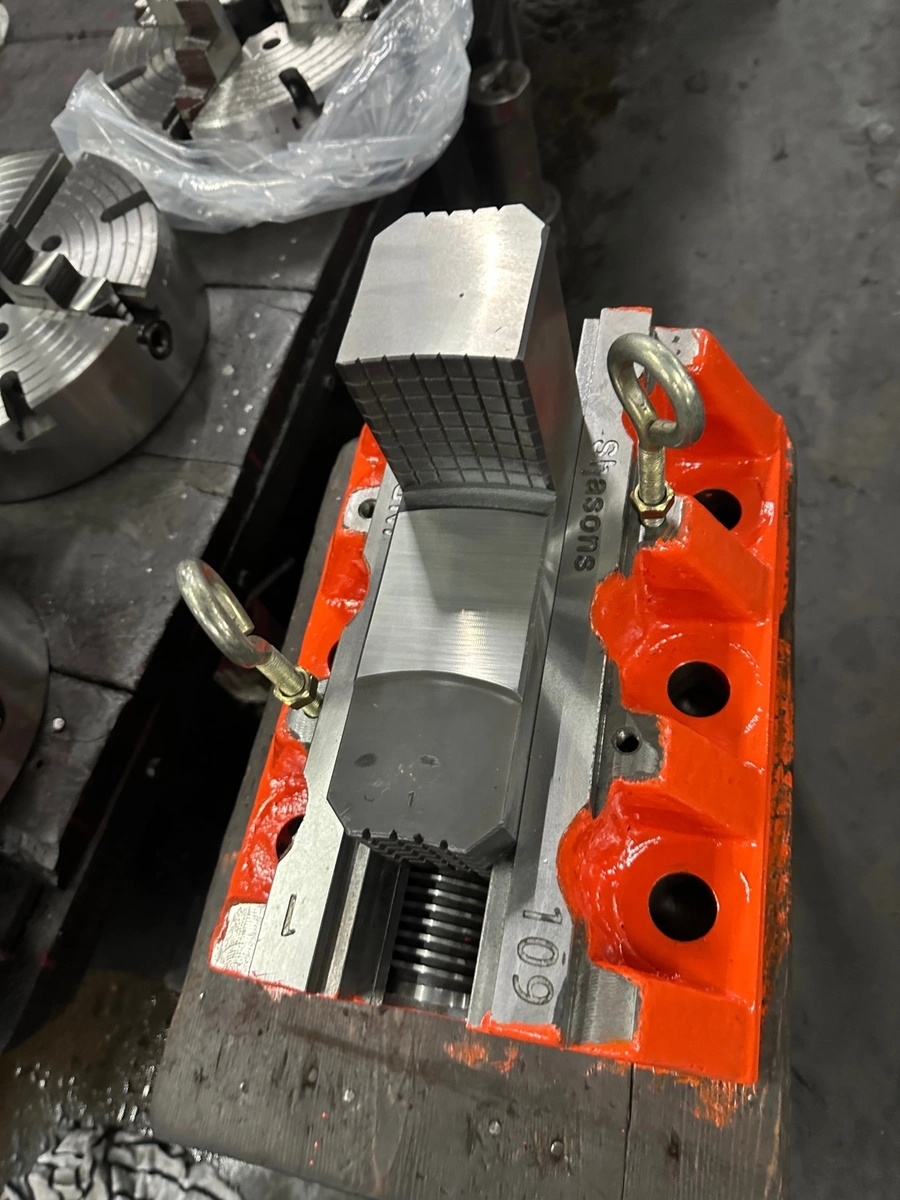

Set of (4) 14" x 10" Boring Mill type jaws for tables with double slots. Complete with (4) Hardened & Ground Serrated Jaws, Wrench Handle, (16) T-Nuts and (4) Bolts. 1-Piece Construction
1)350x310mm(14x12) Face Plate Jaw Body total dimensions
2)Grade 500/7 SG Iron Semi Steel Body
3)Hard and Ground Driving Screw 62.00mm
4)Square Male Punch 25mm for Driving the Screw
5)4 TPI LH Square Thread
6)Jaw Thickness 75mm, Single Piece Construction
7)6x32mm Holes at PCD of 250mm for Mounting
9)8xM12 Taps for Handling Purposes
Dimensions: (see above).
Approx. Weight: 80 - 85 Kgs (176 -187 Lbs). Each piece. Total: 320 Kgs approx
