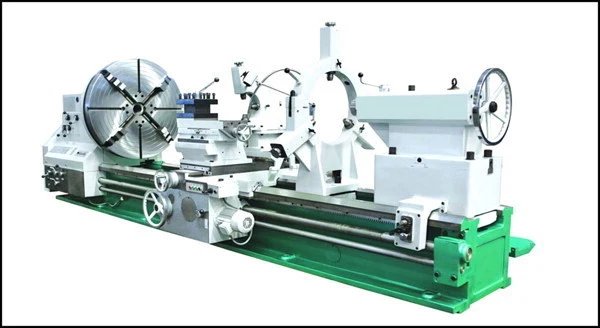

New D-F CF6110A/4000 | Lathes, Engine

Series: CF
Basic information: Max. Workpiece load 6-8 ton, width of bed is 755mm, two guideways in Z axis
Specifications:
ITEM CF61100A CF61125A CF61140A CF61160A
Max. Swing diameter over bed 1000mm 1250mm 1400mm 1600mm
Max. Swing diameter over carriage 630mm 880mm 1030mm 1250mm
Max. Weight of workpiece- between centers 6 ton
Width of guideways on bed 755mm
Distance between centers can choose accordingly
Spindle bore diameter 100mm
Spindle nose taper 1:20
Spindle speed steps
Forward 12
Reverse 12
Spindle speed ranges 6-272rpm
Range of feed per spindle revolution
48kids
Longitudinal 0.057-12.726mm
Cross 0.027-6.096mm
Range of metric threads 46kinds 1-224mm
Range of whit worth threads 46kinds 28-1 t.p.i
Range of module threads 37kinds 0.25-56mm
Close type steady rest Φ50～Φ470mm
Section of tool shank 45×45mm
Top toolpost travel 300mm
Toolpost rapid travel
Z axis-Longitudinal 3.8m/min
X axis-Cross 1.9m/min
Tailstock sleeve diameter 140mm
Tailstock sleeve travel 300mm
4
Tailstock taper Morse No.6
Main motor power 22Kw
