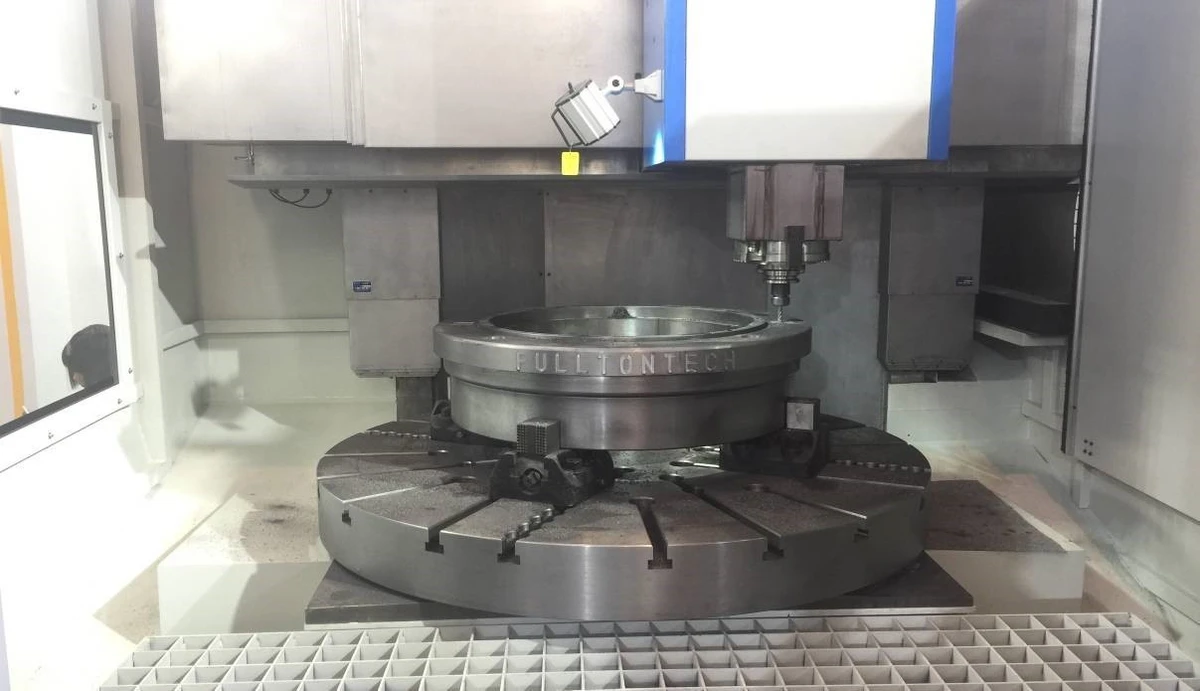

D-F 5m Model CK5250M-50 Vertical Turning/Milling with 2 rams & 4m U/R

2. Main specifications
Main Specifications unit Model
CK5250M(50)
Max. vertical turret cutting diameter mm 5000
Diameter of worktable mm 4500
Max. height of work-piece mm 4000
Max. weight of work-piece ton 50
CNC system 　 Siemens 828D
Worktable
Table speed range Cutting rpm 0.5～40
Milling & indexing rpm 0.001-1
Main motor power kw 90
Max. torque Nm 100000
Two CNC Rams: Right ram for milling&cutting, left ram is for cutting only.
Max. cutting force of ram Right/Left KN 50/40
Horizontal stroke of ram-X axis mm 2550
Vertical travel ram-Z axis mm 2000
Horizontal and vertical feed rate of Ram mm/min 0.001-3000
Rapid travel speed of Ram in X&Z axis mm/min 4000
Section size of ram mm 280 x 280
Milling speed of live spindle-right ram rpm 10-1600
Spindle taper of live spindle-right ram 　 BT50
Live spindle Power-right ram KW 17
Max. torque of live spindle -right ram Nm 600
Option: ATC-Automatic tools change
Cutting tools-cutting toolpost with hirth coupling station 6
Milling tools-suitable BT50 tool shank station 24
Crossbeam
Travel of crossbeam-W axis mm 3300
Elevation speed of crossbeam mm/min 350
Others
Machine overall size(depend on the final configuration) mm 14000x8800x10200
Machine weight(depend on the final configuration) ton 96
