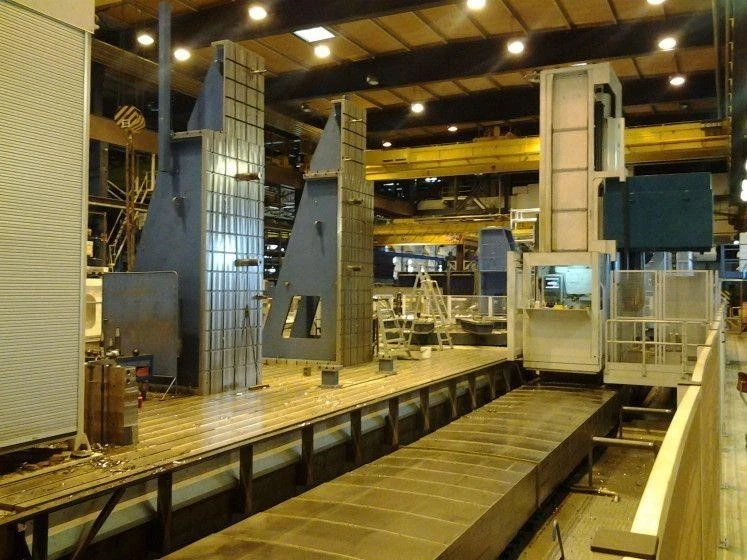

PAMA 180mm (7”) Model Speedram SR2000/180 Floor Type, Ram Type CNC Horizontal Boring Mil
Have one to sell?
ConditionNew
1 available
New
PAMA 180mm (7”) Model Speedram SR2000/180 Floor Type, Ram Type CNC Horizontal Boring Mil
PAMA 180mm (7”) Model Speedram SR2000/180 Floor Type, Ram Type CNC Horizontal Boring Mill. New in 2012 (UNUSED). 18m x 5m travels.
Make PAMA Type Speedram SR 2000
Type of control CNC Control name Siemens 840 D
spindle diameter 180mm (7.08”)
x-travel 18,000mm (708”)
y-travel 5.000 mm *197”)
ADDITIONAL INFORMATION
Equipment / Accessories:
- Hydrostatic guide for all axes - also for the rotary table
- TH 65 rotary table
- Floor plates included
- Head changing station including 8 heads plus 18 tool positions
- coolant system Knoll,
Operating pressure outside spindle 5 bar / inside tool 45 bar
- chip conveyor
- documentation
- longitudinal axis
- column slide axis X:
- stroke axis X: 18000 mm
PAMA 180mm (7”) Model Speedram SR2000/180 Floor Type, Ram Type CNC Horizontal Boring Mil
Imperial
| Spindle Size | 7.0866" |
| X-Horiz Tvl of Col | 708.66" |
| Y-Vert Tvl of Head | 196.85" |
| RPM | 2,500 RPM |
| Z-Spdl Tvl | 39.37" |
| Control | CNC (Siemens 840DE) |
PAMA 180mm (7”) Model Speedram SR2000/180 Floor Type, Ram Type CNC Horizontal Boring Mill. New in 2012 (UNUSED). 18m x 5m travels.
Make PAMA Type Speedram SR 2000
Type of control CNC Control name Siemens 840 D
spindle diameter 180mm (7.08”)
x-travel 18,000mm (708”)
y-travel 5.000 mm *197”)
ADDITIONAL INFORMATION
Equipment / Accessories:
- Hydrostatic guide for all axes - also for the rotary table
- TH 65 rotary table
- Floor plates included
- Head changing station including 8 heads plus 18 tool positions
- coolant system Knoll,
Operating pressure outside spindle 5 bar / inside tool 45 bar
- chip conveyor
- documentation
- longitudinal axis
- column slide axis X:
- stroke axis X: 18000 mm
