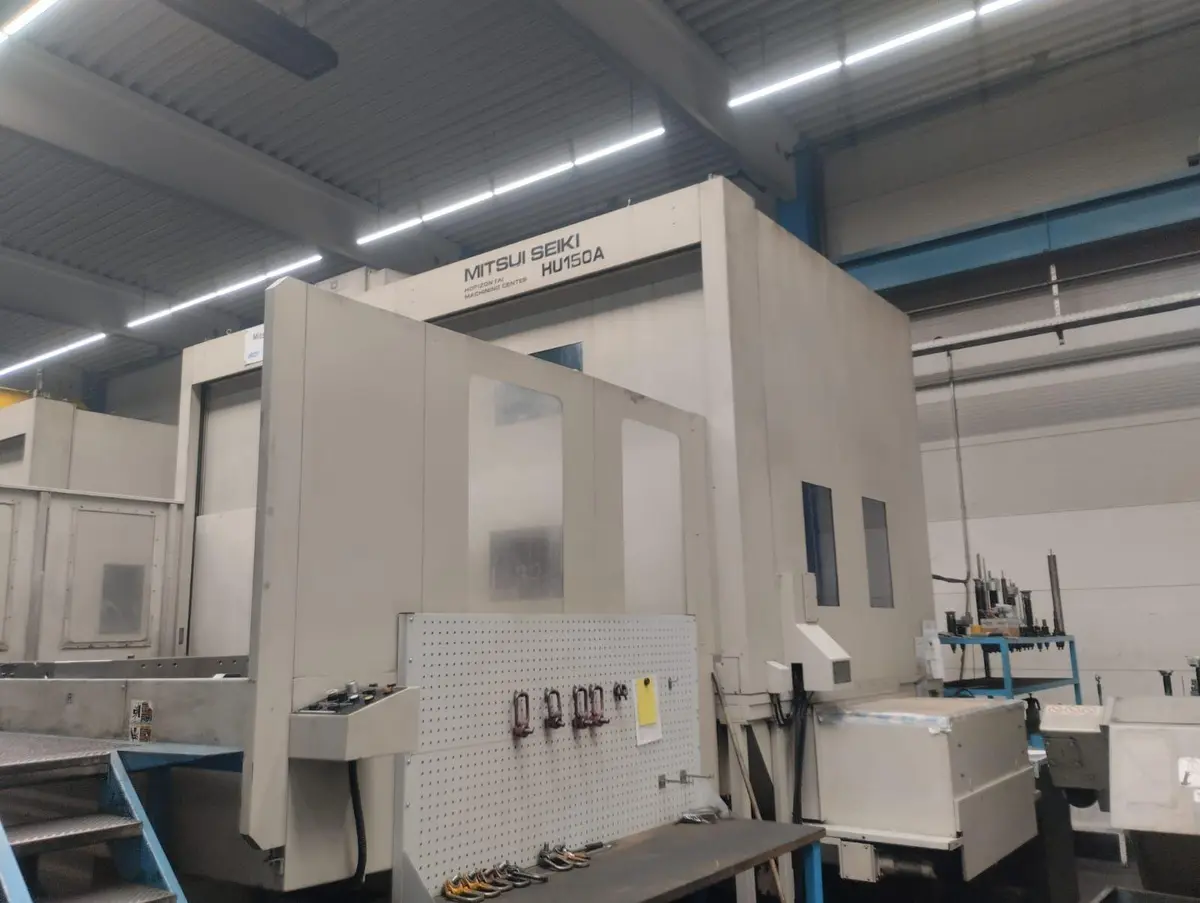

Mitsui Seiki Model HU150A CNC Horizontal Machining Center with dual pallets 1500 x 1500mm. (2) Machines 2006 & 2007. Fanuc 15i-M
Machining Centers, Horizontal
Mitsui Seiki Model HU150A CNC Horizontal Machining Center with dual pallets 1500 x 1500mm. (2) Machines 2006 & 2007. Fanuc 15i-M
| X | 70.9" |
| Y | 59" |
| Z | 47.2" |
| Pallet-W | 1,500 mm |
| Pallet-L | 1,500 mm |
| # Axis | 4 |
Mitsui Seiki Model HU150A CNC Horizontal Machining Center, with dual pallets 1500 x 1500mm. (2) Machines 2006 & 2007. Fanuc 15i-M
Technical specifications:
Spindle Taper: ISO50
Speeds : 6000 RPM
Power : 26kW
Torque : 2.212 Nm
IKZ ( Coolant Through Spindle ) : 40 Bar
ATC magazine: 120 Seats
Travels :
X - 2.400 mm
Y - 2.000 mm
Z - 1.500 mm
B - 0.001º - 360º
Pallet size : 1500 x 1500 mm
Max. Load : 10 Tons
Indexing: 0.001º - 360º
Pallets Changer : 2 nos.
Chip Conveyor
Machine Weight: Approx 40 Tons (88,000 lbs)
