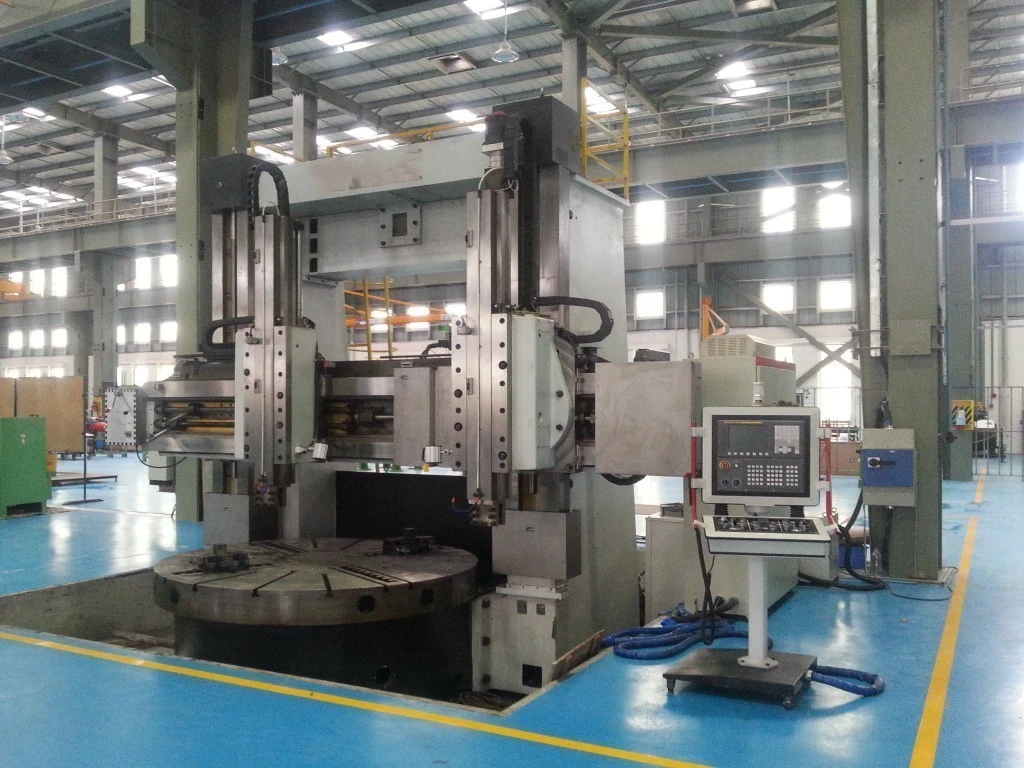

D-F 4,000mm (157.5”) Double Column Model CK-5240 CNC Vertical Turret Lathe. 32 Tons work-piece capacity

Machine Specifications
Model CK5240(32)
Max. vertical turret cutting diameter mm 4000
Diameter of worktable mm 3600
Max. height of workpiece mm 2500
Max. weight of workpiece ton 32
CNC system Siemens 828D
Max.Torque of table turning N.m 80000
Speed steps of worktable step 2 Steps
Speed of worktable r/min 0.5-50
Tool post-One CNC ram and one manual ram toolpost Square types
Ram section size mm 240x240
Right ram machining capacity KN 35
Left ram machining capacity KN 30
Horizontal travel of Ram mm 2050
Vertical travel of Ram mm 1300
Rapid travel speed of Ram mm/min 4000
Rapid travel speed of crossbeam mm/min 350
Cross beam travel mm 2100
Main motor power KW 75
