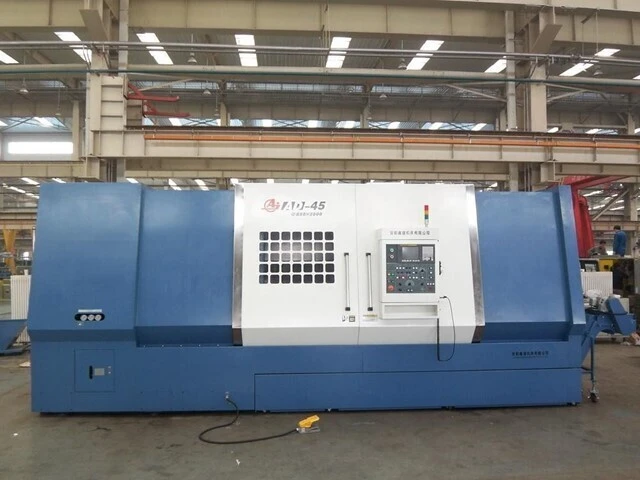

NEW D-F 850mm x 1,500mm (33.469” x 59.06”) Slant Bed CNC LATHE, Model AD45/1500. 5.158” hole thru the spindle

D-F 850mm x 1,500mm (33.469” x 59.06”) Slant Bed CNC LATHE, Model AD45/1500. 5.158” hole thru the spindle. Fanuc 0i-TF CNC Controls.

STANDARD ACCESSORIES:
1 .Fanuc 0i -TF(5pakage)
2. Coolant system
3. Standard wok light
4. Horizontal 12- position Hydraulic turret
5. Standard lathe colure
6. Hydraulic solid 3-Jaw Chuck 500mm
7. Hydraulic tailstock
8. Manual tool
9. Documents
10. Full Chip guard
11. Automatic lubrication system
12. Heat exchanger
13. chip conveyor

Item AD-45/1500mm
Capacities Max. swing over bed Φ850mm
Max.turning dia 800mm
Max.turning dia over carriage 650mm
Max.turning length 1420mm
Distance between centers 1500mm
Max.bar capacity 120/150mm
Feed motion Max. X axis travel 450mm
Max. Z axis travel 1450mm
Rapid traverse of X-axis 12000mm/min
Rapid traverse of Z-axis 15000mm/min
Bed structure 45° slant bed
Hand tool holder 0.001mm/0.01mm/0.1mm
Cutting feed(X-axis and Z-axis) 5000mm/min
Spindle Spindle speed 10-2000rpm
Spindle nose A2-11
Spindle bore Φ131mm
Size of chuck 500mm
Spindle front end bearing(dia) Φ200mm
Turret Number of stations 12
Tool shank size 32mm*32mm
Boring bar shank dia 60mm
indexing time 1.0sec
Motor Main spindle motor AC55KW
X-axis servo motor AC4.0KW
Z-axis servo motor AC6.0KW
Tailstock Max travel of tailstock 1400mm
Tailstock quill dia 140mm
Tailstock quill travel 130mm
Tailstock quill taper hole MT-6
Power Amount of consumed power 130KVA
Power suply 220v/60hz/3p
Cooling system Cooling fluid capacity 450L
Motor type 0.75KW(1HP)
Dimension Overall dimention(L×W×H) 6360×2350×2330
Packing size(L×W×H) 7700×2480×2550
Mass Machine net mass(Kg) 16000
Machine gross mass(Kg) 17000
Positioning
accuracy X-axis positioning accuracy R 0.007
X-axis positioning accuracy B 0.006
X-axis positioning accuracy A 0.016
Z-axis positioning accuracy R 0.015
Z-axis positioning accuracy B 0.011
Z-axis positioning accuracy A 0.040
