Used STANKO 1A983 | Lathes, Oil Field & Hollow Spindle

32" x 80" Stanko oil country lathe model 1N983. with 12.6 hole thru the spindle.
Manufactured by Stanko, Russia

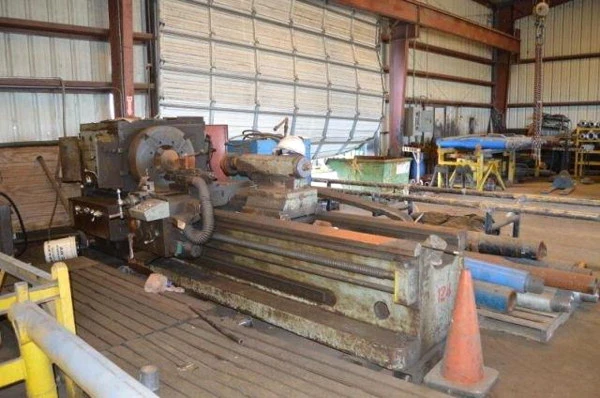

STANKO 32.6” x 80” MODEL 1A983 SEMI-AUTO OIL COUNTRY LATHE WITH 12.6” HOLE THRU THE SPINDLE
SPECIFICATIONS:
• • Serial: 824
• • Spindle Bore: 12.6" Ø
• • Spindle Speed: 8 - 355 rpm
• • Swing Over Bed: 32.6"
• • Swing Over Carriage: 17.72"
• • Max. Weight of the workpiece (in the center): 5000Kgs.
• • Max. Weight of the workpiece (in the chuck): 2000Kgs.
• • Center Distance: 80"
• • Fast Traverse: All Directions
• • Max. Spindle Torque: 3±0,5 kNm
• • Motor: 15 kW
• • Cutting Thread Range (Diametral Pitch Inch): 112...8
• • Cutting Thread Range (Thread Number for Pitch): 28...2
• • Chuck: 28" Dual powered chucks with individually adjustable jaws
• • Semi-Automatic Threading Cycles
• • Taper Attachment
• • Weight: 11,000 kg
• • Dimensions: 185" x 80" x 66"
INCLUDED: 2-Axis Fagor Digital Readouts
