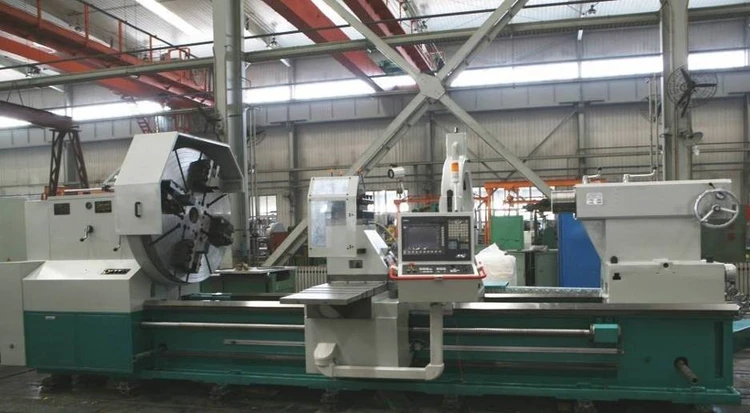

NEW D-F 63" X 160" Model CKF61160M/4000 CNC Flatbed Turning Center. 10 tons capacity

1. Main Specifications
Items Models
CKF61125M CKF61140M CKF61160M
Max. swing over bed Φ1250mm Φ1400mm Φ1600mm
Max. swing over carriage Φ860mm Φ1030mm Φ1230mm
Distance between centers 4000mm
Width of guideway on bed 970mm
Max. workpiece weight between centers 10ton
Spindle bore diameter Φ100mm
Speed of spindle 2—300r/min (4 steps, variable in each range)
Power of main motor 30kw
Toolpost Electric, 4-station
X axis travel 675mm 750mm 850mm
Z axis travel 4800mm
X / Z axis rapid traverse X:4000mm/min; Z:6000mm/min
Feed rate 2000mm/min
Torque of X/Z servo motors 27Nm / 36Nm
Diameter of tailstock quill Φ200mm
Travel of tailstock quill 250mm
