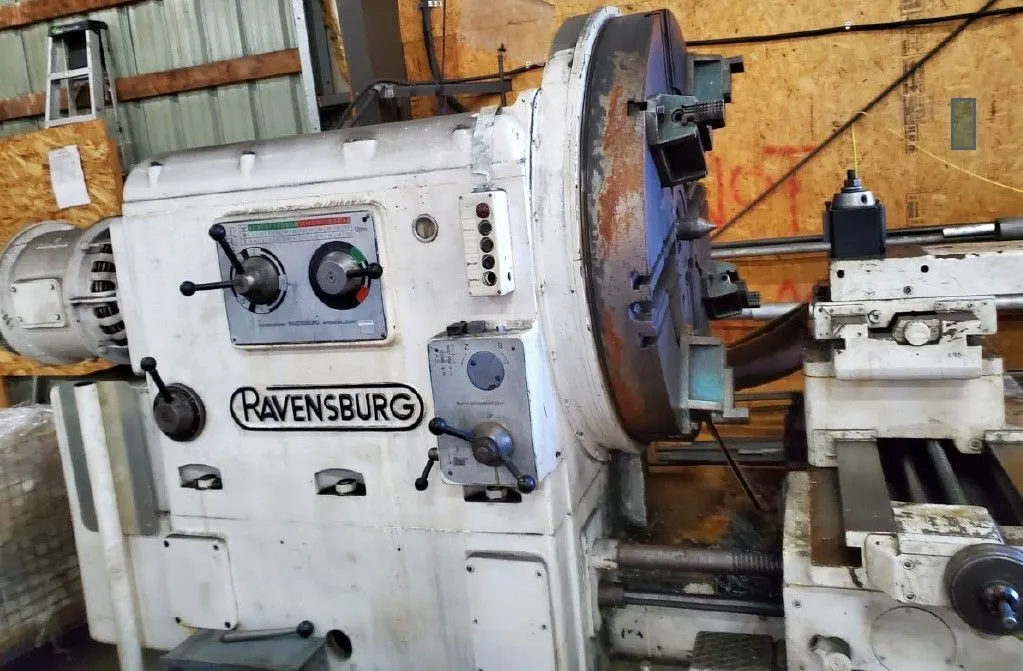

Ravensburg 88" x 255" HD Engine Lathe

RAVENSBURG 88” x 255” CONVENTIONAL SLIDING GAP LATHE
55" - 72" SWING
226" - 255" BED
40HP (SIEMENS)
(includes WEG soft starter electrical panel)
Item #: RAVENSBURG LATHE
Item: RAVENSBURG Gap Bed Engine Lathe
Model #: 88in/101in X 210in
Serial #: N/A
Year Built: N/A

Description
Face Plate Diameter: 72in
Maximum Turning Diameter in Gap: 101in
Length of Gap Face Plate to Ways: 24in
Max. Swing of Workpiece over Ways: 88in
Max. Workpiece Length (Face Plate to Tailstock): 210in
Hole Through Main Spindle Bore: 3.5in
(24) Spindle Speeds: .425 - 90 RPM
EQUIPPED WITH:
72in Face Plate with (4) Bolt On Jaws
Coolant Ready
40 HP Main Drive Motor, INCLUDES WEG SOFT STARTER
24in Capacity Half Rest
Electrical Controls
DRO Ready
Power Tailstock Traverse
Power Compound Slide
