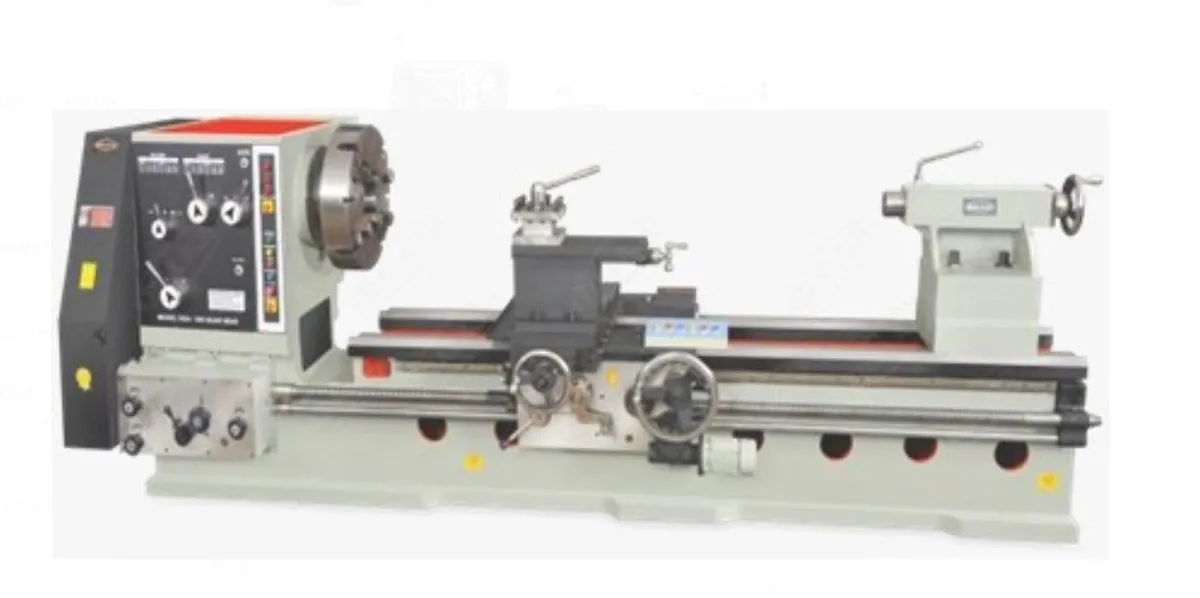

YANTRANG 36” x 13’ HEAVY DUTY ENGINE LATHE MODEL VGH-6

NEW YANTRANG 36” x 13’ HEAVY DUTY ENGINE LATHE MODEL VGH-6
CENTER HEIGHT 457mm (18").
MAX SWING OVER BEDWAYS: 36” DIAMETER
SPINDLE HOLLOW 100mm (4”)
WIDTH OF BED 457mm. (18") BED Hardened Bed Ways
SPINDLE NOSE A2-8 Type
MAIN SPINDLE SPEEDS NOS / RPM RANGE (9) 19-310 RPM
MAIN SPINDLE MOUNTING
Taper Roller Bearings
HEAD STOCK GEARS AND SPLINES
Fully Induction Hardened And Teeth Profile Grinding MATERIAL OF GEARS 20MnCr5 & EN36 Of Shafts And Splines
NORTON GEAR BOX HEAVY WITH DOUBLE SHAFT All Gears Are Hardened With Nitriding Process
DISTANCE BETWEEN CENTRES: 3,400mm
PRICE: ON REQUEST. FREIGHT INCLUDED CIF HOUSTON TEXAS PORT (TARIFFS, IMPORT DUTIES & USA CUSTOMS EXPENSES EXCLUDED).
STANDARD ACCESSORIES:
1.CHUCK BACK PLATE
2.CHANGE GEAR SET (FOR METRIC AND INCH BOTH)
3.CENTRE ADAPTER
4.DEAD CENTRES
5.TOOL POST SPANNER
6.MOTOR PULLEY
OPTIONAL (INCLUDED) ACCESSORIES:
1 STEADY REST
2 FOLLOW REST (ARM TYPE)
3 FACE PLATE
4 CHUCK BACK PLATE EXTRA
5 TAPER TURNING ATTACHMENT (HEAVY)
6 MACHINE LAMP STAND (WITHOUT LAMP)
7 COOLANT PUMP WITH TANK AND FITTINGS
8 SPLASH GUARD SHORT (4' LONG ATTACHED WITH CARRAGE)
9 CARRIAGE (APRON) WITH MOTORDRIVE
10 ____ HP ELECTRICALS (960 RPM) (MOTOR/PANEL BOARD WIRINGS/PUSH BUTTON SWITCHES / V-BELT/FITTINGS) MOTOR MAKE : (ABB / BHARAT BIJLEE OR CROMPTON)
11 FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
12 ELECTRICAL SWITCH SHAFT (THIRD SHAFT) FOR 16' BED LENGTH
13 20" 3 JAW TRUE CHUCK
14 24" 4 JAW DOG CHUCK
