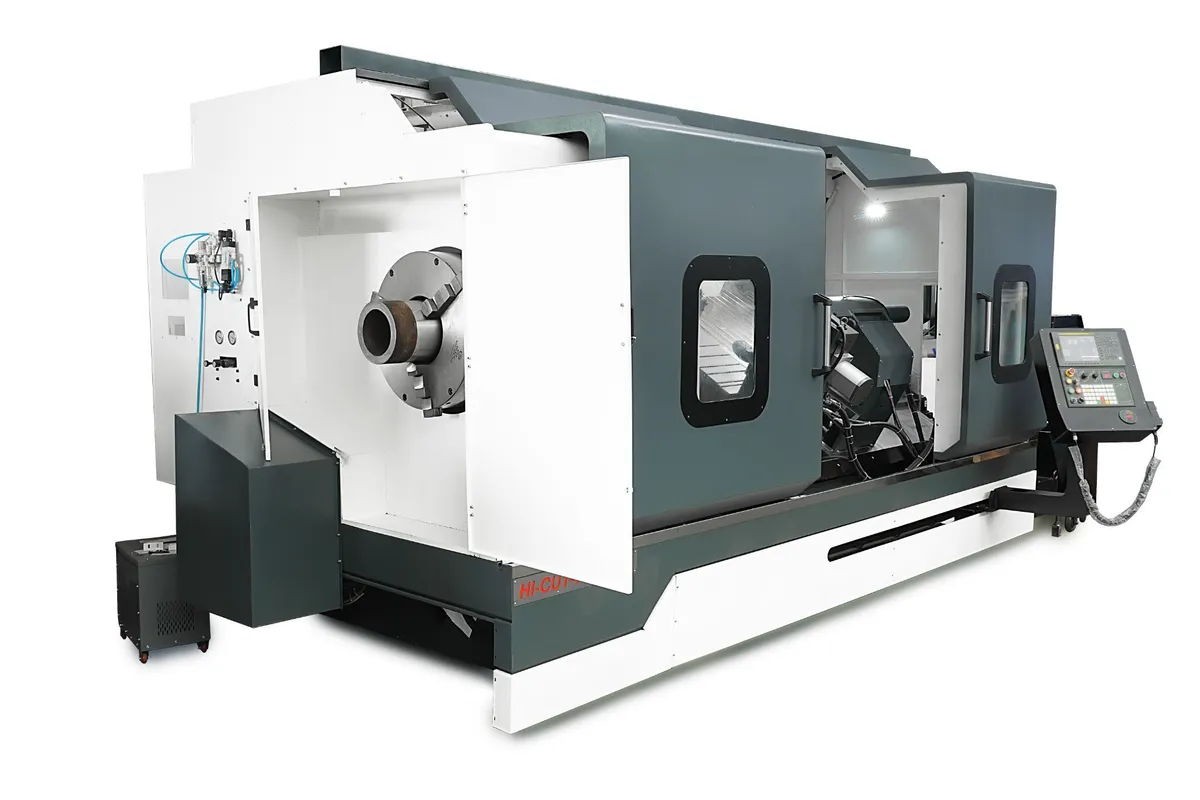

YANTRANG 40” x 80” Slant Bed CNC Oil Country Lathe Model HICUT 700/2000 with 10.95” Hole thru the Spindle

STANDARD SPECIFICATIONS:
DESCRIPTION OF MACHINE Unit Price (USD)
YANTRANG 40” x 80” Slant Bed CNC Oil Country Lathe Model HICUT
700/2000 with 10.95” Hole thru the Spindle
Including all standard accessories as listed below
Control System:
- FANUC OI-TF PLUS CONTROL
A Standard Scope of supply:
-
- LM ROLLER GUIDE WAYS
- RAPID TRAVERSE 15M/MIN
- PRE TENSIONED HIGH PRECISION C-3 CLASS BALLSCREWS
- 4 BORING HOLDER, 1 SIDE HOLDER
- AUTO CENTRALIZED LUBRICATION SYSTEM
- MACHINE WITH TAILSTOCK & 3 COLOR TOWER LIGHT
- TOOL DISPLAY & LEVELING PAD
- TOTAL MACHINE ENCLOSURE GUARD WITH TELESCOPIC COVER
- ELECTRICAL & ELECTRONIC QUALITY DEVICE WITH PANEL AC
- BASIC COOLANT SYSTEM WITH CHIP CONVEYOER & CHIP TRAY (MIVEN MAYFRAN
MAKE)
- 22/26 KW SPINDLE MOTOR WITH GEARBOX
- A2-15 CARTIDGE TYPE SPINDLE
- TAIL STOCK BODY MOVMENT THROUGH Z-AXIS SADDLE & PIN
- PROGRAMABLE STEADY FINGER AND TAILSTOCK QUILL
- EXTRA LONG BORING BLOCK 180MM LENGTH 60DIA.(2 NOS.)
- COOLANT PUMP PRESSURE -8 BAR
- STEADY REST BASE MOVMENT THROUGH SERVO MOTOR DRIVE
- STEADY REST FRU-5( 45 TO 310 DIA.) FAR MAKE
- AUTOGRIP MAKE 275 BORE 600X3 JAW PNEUMATIC CHUCK-01 NOS. (RPM 500)
- SECO MAKE 275 BORE 600X3 JAW MANUAL CHUCK-01 NOS.
- CLT 200 HYD. TURRET 8 STATION
SPECIFICATIONS:
DESCRIPTION UOM HI-CUT 700/2000
1
CAPACITY:
STANDARD TURNING DIA. mm Ø700
MAXIMUM TURNING DIA. mm Ø900
SWING OVER BED mm Ø1000
MAXIMUM TURNING LENGTH mm 2000
2
SLIDES:
CROSS (XAXIS) TRAVEL mm 480
LONGITUDINAL (ZAXIS) TRAVEL mm 2030
RAPID FEED (XAXIS) m/min 15
RAPID FEED (ZAXIS) m/min 10
3
MAINSPINDLE:
SPINDLE NOSE - A2-15
SPINDLE BORE mm 278
THROUGH BAR CAPACITY 275
CHUCK SIZE mm Ø600 X 3 JAW
SPINDLE MOTOR (CONTINUOUSRATING) kw 22
SPINDLE MOTOR (15MIN.RATING) kw 26
SPINDLE SPEED RANGE RPM 15-550
4
TURRET:
SIZE CLT-200
NO OF STATIONS no. 8
TOOL SIZE mm 32 X 32
MAX. BORING BAR CAPACITY mm 60/80
5 TAILSTOCK MT-6
QUILL DIA. mm 170-LIVE
QUILL STROKE mm 150
6
ACCURACY:
POSITIONING ACCURACY mm ±0.01
MACHINE WEIGHT (APPROX) Kg. 17000
