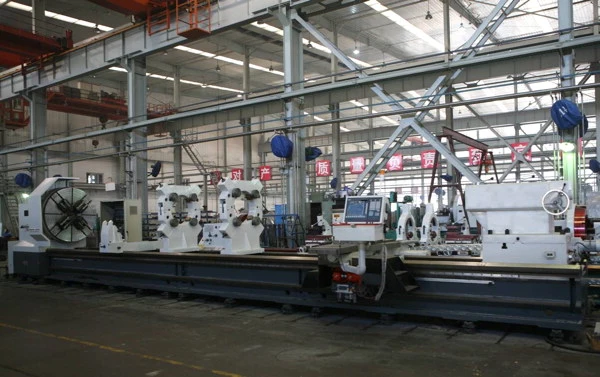

YANTRANG 1.65m x 10m (65” x 400”) CNC TURNING CENTER FLAT BED MODEL FB 1250/10000 WITH LIVE TOOLING & C AXIS

YANTRANG 1.65m x 10m (65” x 400”) CNC TURNING CENTER FLAT BED MODEL FB 1250/10000 WITH LIVE TOOLING & C AXIS
With all standard accessories as below
Control System:
- FANUC OI-TF PLUS CONTROL
A Standard Scope of supply:
- ON CASTING HARDENED BOX GUIDE WAYS
- RAPID TRAVERSE 5M/MIN
- PRE TENSIONED HIGH PRECISION C-5 CLASS BALLSCREW IN X-AXIS
AND RACK AND PINION IN Z-AXIS
- 4 STATION TOOL TURRET VTP-250
- 4 BORING TOOL HOLDER
- 1250 DIA X 4 JAW IINDEPENDENT FACEPLATE TYPE CHUCK
- AUTO CENTRALIZED LUBRICATION SYSTEM
- MACHINE WITH TAILSTOCK
- 3 COLOR TOWER LIGHT
- SEMI ENCLOSURE GUARD WITH TELESCOPIC COVER
- ELECTRICAL & ELECTRONIC QUALITY DEVICE WITH PANEL AC
- TOOL DISPLAY & LEVELING PAD
- BASIC COOLANT SYSTEM WITH COOLANT TANK & CHIP TRAY
- ALPHA 40/45 KW P SERIES SERVO SPINDLE MOTOR WITH GEARBOX
B ESSENTIAL OPTIONS:
BBT-40 LIVE TOOL SPINDLE WITH C AXIS - ATTACHMENT
LIVE TOOL POWER 7.5/11 KW
FLAT BED 1250/10000
CAPACITY: STANDARD TURNING DIA. mm 1200
MAXIMUM TURNING DIA. mm 1500
SWING OVER BED mm 1650
MAXIMUM TURNING LENGTH mm 10000
MAX. JOB WEIGHT ON CHUCK Kg. 8000
MAX. JOB WEIGHT WITH TAILSTOCK (WITH STEADY) Kg. 24000
2
SLIDES:
CROSS (X AXIS)TRAVEL mm 800
LONGITUDINAL (Z AXIS) TRAVEL mm 10060
BED WIDTH Mm 1200
RAPID FEED (X AXIS) m/min 10
RAPID FEED (Z AXIS) m/min 5
3
MAIN SPINDLE:
SPINDLE SPEED Rpm 5-200
SPINDLE BORE mm 181
THROUGH BAR CAPACITY mm 180
CHUCK SIZE mm 1250 X 4 JAW INDEPENDENT
SPINDLE MOTOR (CONTINUOUS RATING) kw 40
SPINDLE MOTOR (15MIN. RATING) kw 45
LIVE TOOL SPINDLE BBT-40
LIVE TOOL MOTOR POWER Kw 7.5/11
4
TURRET: SIZE VTP-250 HYDRAULIC
NO OF STATIONS no. 4
TOOL SIZE mm 40 x 40
5 TAILSTOCK
QUILL DIA. mm 250
QUILL STROKE mm 450
ACCURACY AND POSITIONING X AXIS ±0.020/0.5 Mtr
ACCURACY AND POSITIONING Z AXIS ±0.025/Mtr
REPEABILITY X AXIS ±0.010/Mtr
REPEABILITY Z AXIS ±0.015/Mtr
WEIGHT (Approx) KG 28000
