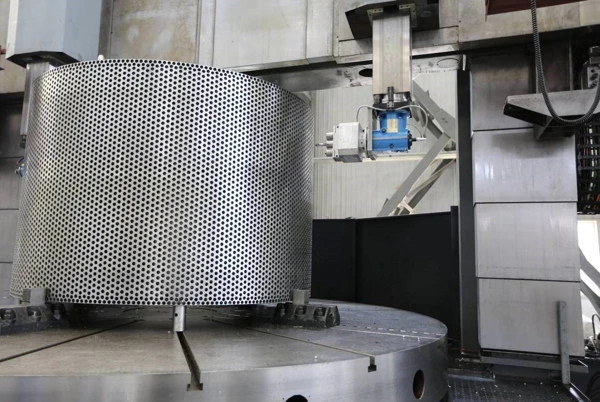

NEW D-F 10m (393.75”) x 5.5m (216.56”) Double Column CNC Vertical Turning & Milling Center with C axis & Live Spindle. Model CK52100M

NEW D-F 10m (393.75”) x 5.5m (216.56”) Double Column CNC Vertical Turning & Milling Center with C axis & Live Spindle. Model CK52100M

Main Specifications unit Model CK52100M
Max. vertical turret cutting diameter mm 10000
Diameter of worktable-(3 parts for transportation) mm 7200
Max. height of work-piece mm 5500
Max. weight of work-piece ton 200
CNC system 　 Siemens 828D
Simultaneous movement axis 　 X、Z、C
Worktable
Table speed range Cutting rpm 0.2～16rpm
Milling & indexing 0.001-1
Main motor power kw 110
One Ram: Ram with live spindle inside
Max. cutting force of ram KN 100
Horizontal travel of Ram-X axis mm 5200
Vertical travel of Ram-Z axis mm 3000
Rapid travel speed of Ram in horizontal and vertical mm/min 6000/5000
Section size of ram mm 400x400
Milling speed of live spindle rpm 10-1500
Spindle taper of live spindle 　 7：24（BT50）
Max. power of live spindle 　 28KW
Max. live spindle force 800N
Crossbeam
Travel of crossbeam mm 4500
Elevation speed of crossbeam mm/min 350
