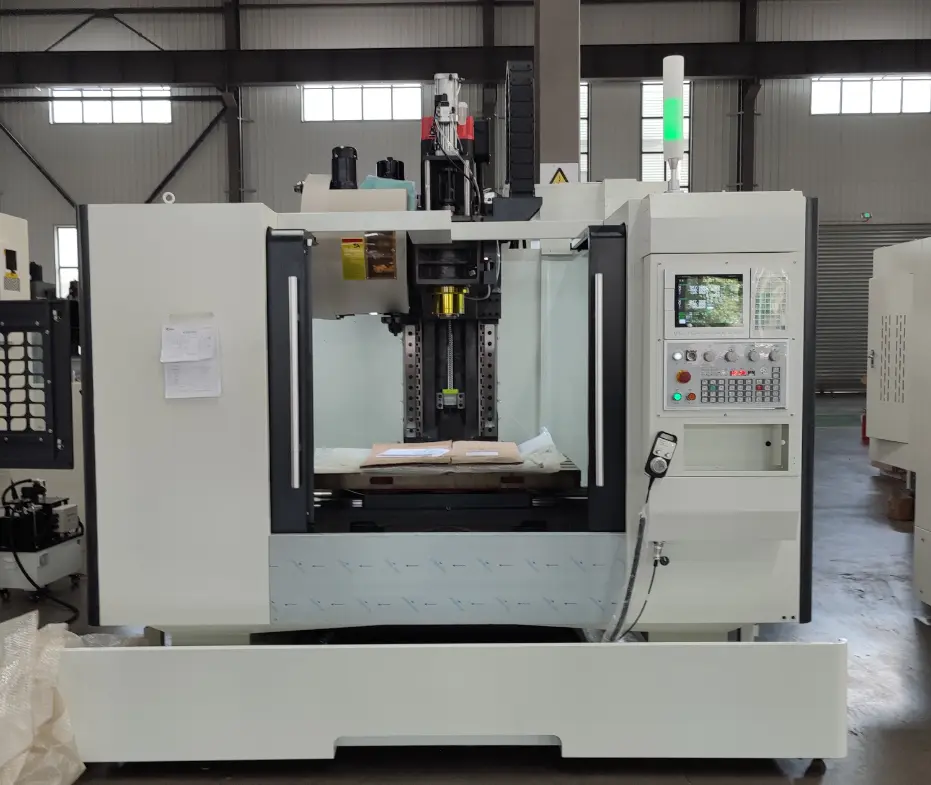

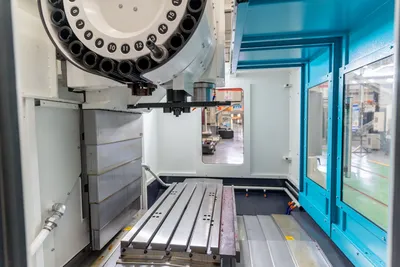

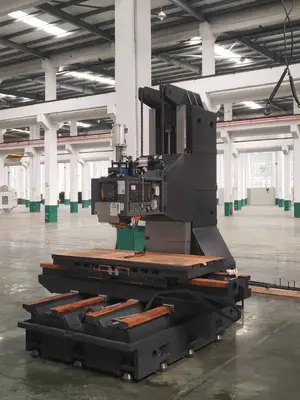

NEW DMTC 20" x 40" Model DVS855T CNC Vertical Machining Center

 Standard Technical Specifications

Model Model TX-855
Worktable dimensions (mm) 550×1000
X-axis travel (mm) 800
Y-axis travel (mm) 550
Z-axis travel (mm) 550
Distance from spindle face to worktable centre (mm) 120-670
Distance from spindle centre to column guide surface (mm) 590
Worktable T-slots (number – dimensions – pitch) 5-18×90
Spindle Taper (Model/Mounting Dimensions) BT40
Spindle Speed (r/min) 8000（belt）
X/Y/Z-axis ball screw specifications X; 4016、Y: 4016、Z: 4016
X/Y/Z-axis rapid traverse speed (m/min) X: 48 、Y: 48 、Z: 48
X, Y, Z-axis ball screw guide specifications X: 35; Y: 45; Z: 45
X, Y, Z-axis coupling specifications X、Y、Z: BK3-150
X/Y/Z motor connection method Direct drive
Recommended main motor parameters (power, kW) 7.5-11KW
Recommended X/Y/Z-axis motor specifications Power kW ≥ 1.8、1.8、3.0
Torque N·m ≥ 12、12、22 (Brake)
Guide rail support brackets (X, Y) (mm) X-420: Y- 230:
Bed shim height (mm) 50
Worktable load capacity (kg) 500
Approximate net weight of machine (t) 5.5
Remarks Y Rear-mounted shaft motor
